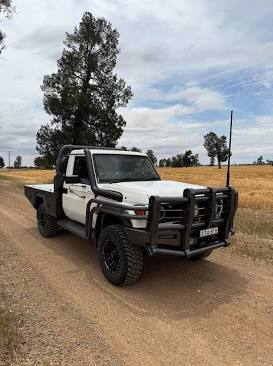

When you are hauling cattle through regional Queensland, running station tracks across the Territory, or crossing the red dust of Western Australia, an off-the-shelf bumper will not cut it. Hitting a 600kg bullock or an outback camel at 100 km/h will instantly destroy a thin mass-market touring bar, folding the wings into your front tyres and pushing the radiator core into your engine block. For rural operators who cannot afford to be stranded hundreds of kilometres from mechanical help, commissioning a custom 5 post bullbar is the gold standard of frontline mechanical defense.
However, ordering a custom 5 post bullbar is a completely different experience from buying a mass-produced bolt-on bar online. Because each bar is hand-fabricated to match your exact vehicle model, suspension lift, and working requirements, there is a dedicated quoting and build process you need to navigate. From selecting tube diameters and brush rail packages to understanding realistic fabrication lead times and organizing pallet transport to remote stations, knowing what to expect prevents frustrating project delays. If you do not plan your build properly, you can easily end up with a bar that does not clear your safety radars or a rig sitting parked in the shed waiting on freight.
This plain English buyer’s guide breaks down everything you need to know about getting a custom 5 post bullbar—from styling options and material choices to realistic lead times, quote breakdowns, and Aussie road rules.
What Can You Customise? Tailoring Your Frontal Defense
The main reason drivers invest in a custom 5 post bullbar rather than a mass-market bar is the ability to build the exact protection package their work demands:
[ Common Custom 5 Post Bullbar Build Options ]
1. Horizontal Pipe Sizing
└── Standard 63mm (2.5-inch) vs Extreme 76mm (3-inch) heavy structural tubing.
2. Integrated Side Brush Rails & Steps
└── Single or double-tier scrub rails tying the outer posts directly into rock sliders.
3. Front Mesh & Center Protection
└── Welded expanded steel wire mesh or laser-slotted high-flow cooling grilles.
4. Recovery & Winch Integration
└── Low-mount 12,000lb winch cradle, dual hi-lift jack slots, and 4.75t rated tow points.
5. Surface Finishes
└── Commercial satin black powder-coat, 2K factory colour-matched paint, or mirror polish.
- Pipe Diameters and Post Spacing: A standard custom 5 post bullbar usually runs 63mm (2.5-inch) horizontal tubular cross-pipes. If you operate in severe livestock country, you can step up to massive 76mm (3-inch) structural alloy or steel pipes to maximize bend resistance across your headlights.
- Double Scrub Rails and Steps: To protect your front guards and doors from scrub limbs or cattle swiping past the cab, fabricators can build matching scrub rails that connect the outer wings of your custom 5 post bullbar directly to heavy-duty rock sliders.
- Lighting and Aerial Tabs: Unlike mass-produced bars with fixed holes, a custom 5 post bullbar lets you specify exactly where your driving light brackets, UHF aerial mounts, and sand flag brackets are welded.
- Winch Setup and Recovery Points: Fabricators can build your custom 5 post bullbar around your chosen winch model, incorporating an independent chassis cradle with integrated rated recovery points that pull straight from the frame.
If you are looking for an uncompromised, build-to-order cattle barrier that combines show-grade mirror polishing with extreme impact defense, the Solid Stainless 5 Post Mesh Bullbar delivers five full-height vertical uprights, continuous horizontal cross-tubes, and heavy welded cooling mesh built for the toughest outback tracks.
The Quoting Process: How Fabricators Price Your Build
Getting a quote for a custom 5 post bullbar is straightforward when you know what details your fabricator needs upfront:
[ The 5-Step Custom Quote Workflow ]
Step 1: Vehicle Build Details
├── Exact Year, Make, Model & Trim (e.g. 2024 Toyota LandCruiser 79 Series Single Cab)
├── Front Suspension Lift (Standard vs 2-inch or 3-inch aftermarket lift)
└── Safety Tech Fitted (Factory millimeter-wave radar & front parking sensors)
Step 2: Material & Style Selection
├── Cold-Rolled High-Tensile Steel vs 5052 Marine Structural Alloy Plate
└── 63mm vs 76mm Cross-Pipes + Standard or Expanded Wire Mesh
Step 3: Accessory Options Added
├── Winch Cradle, Driving Light Tabs, Aerial Mounts & Dual Scrub Rails
└── Surface Finish (Raw transit primer, textured powder-coat, or 2K OEM colour-match)
Step 4: Deposit & Production Slot
└── 20% to 50% deposit locks in your fabrication slot and materials on the cutting list
Step 5: Pallet Transport & Final Balance
└── Final payment cleared once fabrication is complete prior to freight dispatch
- Have Your Vehicle Specs Ready: When requesting a quote for a custom 5 post bullbar, always specify your exact model year, front suspension lift, and whether your grille carries factory safety radar sensors. A bar built for an older standard-height ute will not sit level on a rig with a 3-inch suspension lift.
- Itemized Quote Breakdown: A professional fabricator will provide an itemized quote separating the base custom 5 post bullbar shell from optional add-ons like brush rails, fog light inserts, winch cradles, and powder-coating.
- Deposits and Final Payment: Most custom workshops require a 20% to 50% deposit to lock your job into the production schedule and purchase laser-cut plate steel. The balance is paid once the custom 5 post bullbar finishes final quality checks before dispatch.
To explore alternative frontal designs, low-profile touring options, and commercial setups across our catalog, browse our full Bull Bars category to find the right frontal setup for your rig.
Realistic Lead Times: Why Custom Builds Take Time
One of the biggest surprises for first-time buyers ordering a custom 5 post bullbar is the turnaround time:
| Fabrication Stage | Time Required | What Happens in the Workshop |
| CAD Design & Laser Cutting | 1 to 2 Weeks | Precision CNC cutting of 5 vertical posts and channel base |
| Bending & Jig Assembly | 2 to 3 Weeks | CNC press-brake channel folding and chassis jig alignment |
| Hand & Robot Welding | 2 to 3 Weeks | Circumferential multi-pass welding across all five posts |
| Surface Finishing | 1 to 2 Weeks | Zinc-rich powder-coat curing, 2K paint baking, or polishing |
| Packaging & Pallet Freight | 1 to 2 Weeks | Heavy timber crating and regional linehaul transport |
| Total Typical Lead Time | 6 to 12+ Weeks | Varies based on seasonal pastoral demand |
[ Why a Custom 5 Post Bullbar Takes 6 to 12 Weeks ]
Order Placed & Deposit Paid
│
â–¼
Laser-Cut Flat Plate Steel (CNC cutting of 5 vertical uprights & channel base)
│
â–¼
Tube Bending & Manual Fitment (Threading 63mm-76mm pipes through laser-cut holes)
│
â–¼
Structural Welding on Jigs (Multi-pass structural welds to ensure zero chassis twist)
│
â–¼
Sandblasting & Surface Coating (Zinc primer + industrial powder-coat or OEM 2K paint)
│
â–¼
Oversized Pallet Freight Dispatch (Secured inside heavy timber crating for outback freight)
Unlike lightweight mass-produced bumpers pulled off a warehouse rack, an authentic custom 5 post bullbar is hand-crafted metalwork. Threading heavy horizontal cross-pipes through five laser-cut uprights and completing multi-pass circumferential welds without heat-warping the steel takes genuine trade skill.
If you need a custom 5 post bullbar for a scheduled muster or an upcoming remote expedition, always plan ahead. During busy seasonal periods—such as the lead-up to the dry season in northern Australia—fabrication queues can easily blow out to 12 or 14 weeks.
For deeper technical comparisons on structural post layouts and wing deflection, check out our 5 post vs 3 post bull bar comparison to learn how multi-post grids disperse severe animal strike forces.
Steel vs Alloy vs Stainless: Picking Your Base Metal
When filling out your quote form for a custom 5 post bullbar, choosing your base metal impacts price, weight, and outback durability:
| Specification Parameter | Cold-Rolled Mild Steel | 5052 Structural Alloy Plate | 304 Marine Stainless Steel |
| Average Bare Weight | 78kg to 98kg | 42kg to 58kg (Saves ~40kg) | 82kg to 102kg |
| Animal Strike Yield | Maximum elastic yield | High dynamic absorption | Maximum tensile strength |
| Corrosion Resistance | Requires zinc powder primer | 100% immune to red rust | 100% rust & pit proof |
| Finish Options | Satin powder-coat or 2K paint | High-polish or powder-coat | Mirror high-polish included |
| Best Application | Pastoral stations & cattle trucks | Touring utes watching axle limits | Flagship tourers & show rigs |
[ Material Trade-Offs for Your Custom Build ]
High-Tensile Steel:
Maximum toughness ===> Can be field-straightened if bent ===> Heavier front overhang
Structural Alloy Plate:
Saves ~40kg on front axle ===> Zero red rust on coastal tracks ===> Thicker 8mm alloy plate
Marine Stainless Steel:
Show-grade mirror polish ===> Unyielding tensile strength ===> Lifetime rust-proof finish
- Why Station Rigs Choose Steel: For cattle properties and remote outback transport corridors, a steel custom 5 post bullbar remains the undisputed king. High-tensile steel can absorb repeated animal strikes without weld fracture, and if bent on a remote track, it can often be winched or jacked straight to get you home.
- Why Touring Builds Choose Alloy: If you drive a modern dual-cab ute with independent front suspension (IFS), keeping front-end weight down is essential. An alloy custom 5 post bullbar uses thick 8mm plate to give you massive protection while cutting tare weight by nearly 40kg.
- The Stainless Steel Benchmark: If you want extreme strength combined with an authentic, head-turning outback finish that never chips or rusts, ordering your custom 5 post bullbar in mirror-polished 304 stainless steel is the ultimate choice.
To pair your front-end touring setup with cab accessories that reduce cockpit heat on sunny highway runs, explore our dedicated Sun Visors category or check out platform-specific models like the Solid 79 Series Sun Visor to keep your dashboard protected from extreme outback sun.
Freight Logistics: Shipping Oversized Pallets Across Australia
Because a fully welded custom 5 post bullbar cannot be broken down into small parcels, freight logistics represent a major part of the buying process:
[ Freight Logistics for Your Custom Bullbar ]
Custom Crated Dimensions: ~1950mm Wide x 900mm Deep x 950mm High
Volumetric Shipping Weight: 280kg to 350kg+ cubic equivalent
│
â–¼
Capital City Commercial Transport Depot Delivery ($120 to $180)
│
â–¼
Regional Farm Machinery / Rural Freight Depot Delivery ($180 to $280)
│
â–¼
Direct Remote Cattle Station Delivery via Road Train Carrier ($300 to $480+)
- Pallet Crate Packaging: Professional fabricators pack your custom 5 post bullbar inside heavy timber frames wrapped with high-density protective foam and plastic wrap. This stops powder-coated outer wings or polished pipes from rubbing during long transport runs.
- Depot Collection vs Station Delivery: Delivering an oversized pallet to a transport depot in an Australian capital city is cheap and straightforward. If you live on a remote cattle station in the Kimberley or regional Queensland, having your custom 5 post bullbar delivered to a local rural freight depot or farm machinery dealer saves significant transport costs.
- Inspect Before Signing: Always inspect the crate for forklift damage before signing the transport consignment note. A reputable supplier insuring your custom 5 post bullbar in transit guarantees that any handling damage is resolved without out-of-pocket costs.
If you are exploring frontal protection options across other platforms, compare our technical breakdown on the Toyota Hilux muzz bar or explore our Mazda BT-50 bullbar Solid to understand front-end protection dynamics across different platforms.
Suspension & Weight: Preparing Your Rig Before Delivery
A critical mistake motorists make when ordering a custom 5 post bullbar is forgetting about their front suspension coils:
Front Overhang Load (~115kg to 155kg)
[ Custom 5 Post Bullbar + Winch + Spotlights ]
\
v
[O===========O] ---------------------- [O===========O]
Front Axle Line Rear Axle Line
(Factory GAWR: e.g., 1,480kg)
Placing an 80kg to 95kg steel custom 5 post bullbar, a 12,000lb low-mount winch (35kg to 45kg), and heavy driving lights forward of the front axle centerline adds substantial permanent mass.
If you bolt a heavy custom 5 post bullbar onto soft factory springs:
- Your front end will sag by 30mm to 50mm, severely cutting upward shock travel.
- Your suspension will bottom out harshly against rubber bump stops over washboard corrugations.
- Your wheel alignment will lose camber and toe angles, chewing through expensive front tyres in a few thousand kilometres.
- Your headlights will point straight at the tarmac, ruining night driving visibility.
Always budget for heavy-duty constant-load front coil springs rated for a permanent 100kg+ accessory load before your custom 5 post bullbar arrives. On touring utes carrying rear canopies, dual spare wheels, and long-range fuel tanks, combining your bar installation with a certified Gross Vehicle Mass (GVM) upgrade ensures full legal road compliance and prevents front-axle overloading.
For deeper technical guidance on independent chassis cradles and recovery ratings, read our guide on the best bull bars for winches to learn how subframes handle dynamic recovery loads.
To complete your touring setup with heavy-duty flatbeds, check out our DIY Tray Kits category and DIY Ute Tray Kit Dual Cab for complete flat-pack fabrication options.
Australian Road Regulations & ADR Compliance Standards
Any frontal protection accessory bolted to an Australian road-registered vehicle must adhere strictly to national standards and state transport modification codes:
- ADR 69/00 & ADR 73/00 (Occupant Crash Protection): A road-legal custom 5 post bullbar features vehicle-specific subframe brackets incorporating calculated crumple accordions. In a high-speed collision, these brackets absorb dynamic collision energy and transmit crash deceleration pulses to chassis sensors at the exact factory rate, ensuring SRS airbags deploy without delay.
- Australian Standard AS 4876.1-2002: The bar profile must conform closely to the shape of the vehicle’s front end. Leading builders ensure all forward-facing surfaces, vertical posts, and brackets on a custom 5 post bullbar feature rolled, deburred edges with a minimum 5mm radius to minimise injury risks to vulnerable road users.
- The 11-Metre Forward Road Visibility Rule: As enforced by state transport authorities—including Transport Victoria VSI 1 Bull Bar Standards and Transport for NSW Frontal Protection Guidelines—a front bar cannot project upward into the driver’s 11-metre forward road viewing plane or obscure front indicators, headlights, or licence plates. Furthermore, the overall installation must satisfy national modification frameworks under the Department of Infrastructure ADR Vehicle Standards to maintain ongoing roadworthiness.
Buying an uncertified, non-compliant bar risks major roadside defect notices, expensive engineering inspections, and denied insurance claims in the event of an accident.
Frequently Asked Questions
How long does it take to build a custom 5 post bullbar?
Because each bar is hand-fabricated, laser-cut, and welded on precision jigs, lead times for a custom 5 post bullbar typically range from 6 to 12 weeks. During peak pastoral muster seasons or the lead-up to the winter touring dry season, build queues can extend to 14 weeks.
What information do I need to provide for a custom 5 post bullbar quote?
You need to provide your exact vehicle year, model, cab type, and trim level, whether you have an aftermarket suspension lift (2-inch or 3-inch), and whether your vehicle is fitted with factory safety radar sensors. You should also specify your preferred material (steel vs alloy), pipe size (63mm vs 76mm), and brush rail requirements.
Are custom 5 post bullbars street legal across Australia?
Yes, provided the bar complies with Australian Standard AS 4876.1-2002 and state transport guidelines like Transport Victoria VSI 1. A road-legal custom 5 post bullbar must feature smooth deburred edges with a minimum 5mm radius, follow the front contour of the vehicle, keep the top tube below the driver’s 11-metre road sightline, and use airbag-compatible chassis brackets.
Can a custom 5 post bullbar be fitted to late-model utes with radar?
Yes. Professional fabricators design their center cross-pipes and wire mesh screens to sit below the active 20-degree viewing envelope of factory millimeter-wave radar sensors, ensuring autonomous emergency braking and adaptive cruise control function without false alarms.
Do I need to upgrade my front suspension for a custom 5 post bullbar?
Yes. A complete steel custom 5 post bullbar weighs between 78kg and 98kg bare. When you add a low-mount electric winch, driving lights, and bash plates, the total weight added over the front axle can easily exceed 125kg. Fitting heavy-duty constant-load front coil springs rated for +100kg prevents suspension sag and preserves proper steering geometry.
Summary: Building Your Ultimate Outback Frontal Defense
Commissioning an authentic custom 5 post bullbar is the ultimate way to protect your vehicle from catastrophic animal strikes on remote outback tracks. By understanding what can be customised, providing accurate vehicle specs during the quoting process, budgeting for heavy-duty constant-load front coils, and choosing experienced builders who guarantee ADR compliance, your four-wheel drive will be ready to tackle the toughest regional transport routes with complete confidence.
