Anyone who has pointed a classic Y60 Nissan Patrol straight into a searing western sunset across regional Australia knows how brutal the glare can be. The GQ Patrol is an absolute legend of the Aussie bush—tough as nails, coil-sprung, and powered by unbreakable motors like the TD42 diesel and TB42 petrol. But that big, flat, upright windscreen acts like a giant glass greenhouse. Factory internal sun flaps are usually sagging or brittle after thirty years of outback heat, and they do nothing to stop solar radiation once light penetrates the cab. That is why fitting a heavy-duty gq patrol sun visor is one of the most practical upgrades you can make to your rig.
Choosing the right gq patrol sun visor is about more than just nailing that tough, period-correct Aussie touring look. An exterior visor acts like a verandah over your windscreen, stopping heat and blinding light before it ever hits the glass. On older Patrols, this is critical because genuine replacement dashboards are nearly impossible to find in good nick, and intense sun bakes the vinyl until it splits wide open. But before you bolt one on, you need to know how it mounts to the factory rain gutters, how to clear your 4WD snorkel, and how to stay on the right side of Aussie road rules.
This plain English shed guide breaks down everything you need to know about choosing and fitting a gq patrol sun visor—from body compatibility and style options to gutter clamping and snorkel clearances.
What Is It and Why Does Your GQ Need One?
To see why so many four-wheel drive owners fit an exterior gq patrol sun visor, you only have to look at the differences between standard interior flaps and an external steel awning:
[ Factory Internal Sun Flaps ]
• Where they sit: Inside the cab, screwed into the roof headliner
• How they work: Only block light AFTER it has already passed through the windscreen
• Heat protection: Zero; solar rays turn the dashboard and cab into a pizza oven
• Common issues: Floppy plastic hinges, broken detents, and huge unshaded glass gaps
[ Exterior GQ Patrol Sun Visor ]
• Where it sits: Outside the cab, mounted directly over the upper windscreen header
• How it works: Intercepts harsh solar radiation BEFORE it ever touches the glass
• Heat protection: Lowers cab temps by up to 12°C and protects brittle dashboard vinyl
• Construction: Solid zinc-coated steel or alloy plate built for thick bush scrub
- Stops Cabin Heat Outside the Glass: Once sunlight passes through your windscreen, it turns into trapped thermal heat. Internal flaps cannot stop that heat from baking your cockpit. A solid gq patrol sun visor blocks solar energy on the outside of your cab, letting heat dissipate into passing highway airflow.
- Saves Rare Vintage Dashboards: Clean GQ Patrol dashboard pads are like gold dust these days. Decades of harsh ultraviolet sun make the factory vinyl brittle, causing deep cracks across the instrument binnacle. An exterior gq patrol sun visor casts a permanent shadow over the top third of your dash, lowering surface temps by up to 25°C to stop cracking.
- No More Squinting on Highway Runs: Driving west across the Hay Plains or the Nullarbor into low-angle afternoon sun is exhausting. A rigid gq patrol sun visor cuts out blinding horizon glare without dropping down into your driving sightline like clumsy interior flaps.
If you are hunting for an authentic, vehicle-specific shield engineered to bolt straight onto your cab, the GQ Patrol Sun Visor (1980–1997) is precision-pressed to match the factory roofline of classic Nissan four-wheel drives.
Cab Fitment: What Fits Across the 1980 to 1997 Generations?
One of the best things about older Nissan four-wheel drives is how much sheet metal they share. If you are shopping for a gq patrol sun visor, cab compatibility is broad:
[ Nissan Patrol Cab Range: 1980 to 1997 ]
• MQ / MK Patrol (1980–1987): Series 160 & 260 round and square headlight models
• GQ Patrol (1988–1997): Y60 Series 5-door wagons and short wheelbase (SWB) shorties
• Cab Chassis Utes: Standard roof single-cab coil-spring and leaf-spring utilities
• Windscreen Uniformity: Identical windscreen glass dimensions and gutter rake angle
- MQ and GQ Cross-Compatibility: Nissan kept the same upper cab structure, windscreen glass frame, and rolled roof drip gutters from the 1980 MQ right through to the end of the GQ run in 1997. That means an authentic gq patrol sun visor engineered for an MQ bolts straight onto a late-model 1996 or 1997 GQ without any bracket modifications.
- Wagon vs Ute Rooflines: Whether you drive a 5-door family wagon, a short-wheelbase three-door shorty, or a rugged single-cab farm ute, the front windscreen width and roof curvature are identical. A quality gq patrol sun visor fits across all these body shapes.
- High-Roof Super Roof Models: Be careful if you own an imported Safari high-roof model. While the windscreen glass is the same, the roof crown sits much taller above the gutters. Standard gq patrol sun visor brackets are built for standard low-roof cabs, so always double-check your roof height before ordering.
To check out sun protection options for other touring rigs, explore our full Sun Visors category to find gear tailored to your four-wheel drive.
Solid Steel vs Alloy Mesh: Choosing Your Style
When picking out a gq patrol sun visor, you have two main construction styles to consider:
| Feature Specification | Solid Steel Visor Style | Expanded Alloy Mesh Visor Style |
| Base Material | Zinc-coated cold-rolled mild steel | Marine-grade aluminium mesh in tubular frame |
| Solar Glare Blockout | 100% total direct shade | 70% to 80% diffused light filter |
| Wind Airflow | Deflects air smoothly over the roofline | Air passes straight through the mesh louvers |
| Scrub & Branch Armor | Maximum (deflects thick eucalyptus limbs) | Good (light scrub branches slide over frame) |
| Finish Options | Satin black or 2K factory colour-matched | Durable powder-coated satin black |
| Weight | 5.5kg to 7.8kg | 2.2kg to 3.5kg |
[ Solid Steel Style ]
100% shade ===> Classic Aussie touring look ===> Paint-matched to your rig
[ Alloy Mesh Style ]
High airflow ===> Zero wind drag ===> Tough satin black powder-coat
- Solid Steel Visors: For that iconic outback touring stance, a solid steel gq patrol sun visor is hard to beat. It provides complete, total shade across the upper glass, protects your roof header from tree branches when pushing through tight scrub, and can be sprayed in 2K paint to match your factory Nissan body colour.
- Alloy Mesh Visors: If you do heaps of high-speed open-road touring at 110 km/h and want the quietest cab possible, an alloy mesh gq patrol sun visor lets oncoming air flow straight through hundreds of angled louvers. This cuts aerodynamic drag right down while still taking the sting out of harsh midday sun.
If you are after lightweight alloy setups for other 4WDs in the shed, options like the Solid Heavy Duty Alloy Sun Visor or Solid Heavy Duty Alloy sunvisor show how alloy frames keep wind noise to a minimum.

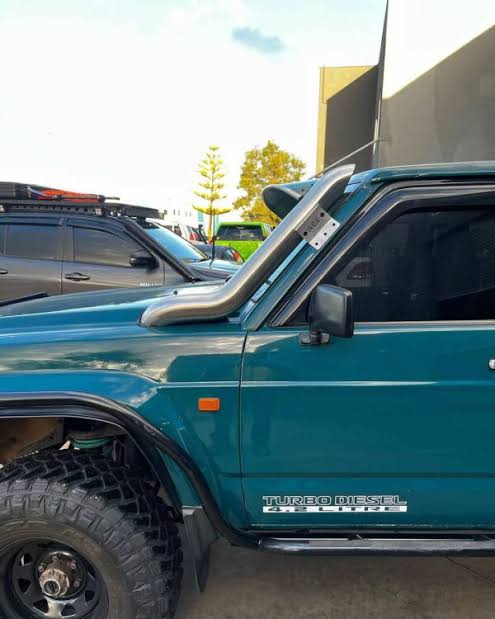

Snorkel Clearances: Clearing Safari & 4-Inch Stainless Intakes
Most touring GQ Patrols run a raised air intake on the driver’s side A-pillar to supply clean air to the engine and keep water out during river crossings. Making sure your gq patrol sun visor clears your snorkel is a must:
- Factory Nissan and Safari Plastic Snorkels: Standard plastic raised air intakes run close along the driver’s side A-pillar. A dedicated gq patrol sun visor features a pre-formed scallop cut into the outer right wing. This cutout gives you roughly 15mm of clearance, ensuring the visor never rubs against the snorkel body when the cab twists on rough tracks.
- Custom 4-Inch and 5-Inch Stainless Snorkels: Big-bore stainless steel snorkels are massively popular on modified TD42s, but they often sit a bit further off the guard and pillar. When running a custom pipe, always dry-fit your gq patrol sun visor before tightening down your gutter clamps. If the gap is tight, slightly slotting the top snorkel bracket gives you the breathing room you need to prevent annoying track rattles.
Paint Matching and the Anti-Glare Underside
A solid steel gq patrol sun visor gives you the choice of running a tough satin black look or spraying it to match your Patrol:
[ Finding Your Nissan Paint Code on the Firewall Build Plate ]
Polar White (QM1) | Pewter Metallic (EY0) | Platinum Silver (KL0) | Black (KH3)
│
â–¼
[ Sand Primer Smooth & Mask the Polished Front Trim Strip ]
│
â–¼
[ Spray 2K Basecoat & Clear Coat on Top Surface ONLY ]
│
â–¼
[ Keep the Underside Finished in Matte Green or Satin Black ]
- Matching Factory Nissan Paint: Spraying the top face of your gq patrol sun visor to match classic factory colours—like Polar White or Pewter Metallic—gives your Patrol a tidy, professional finish that turns heads at camp.
- The Anti-Glare Underside Rule: Never spray gloss clear coat on the underside of a gq patrol sun visor! A shiny bottom face catches midday sun bouncing off your bonnet and reflects it straight back into your eyes. Quality visors keep the underside finished in non-reflective satin green or flat black enamel to absorb glare and keep your eyes fresh.
For drivers building out later-model Nissan wagons alongside their GQ, options like our Solid 4×4 Sun Visor or classic Solid 80 Series LandCruiser Sun Visor use the exact same anti-glare undersides.
Shed Installation: Gutter Clamping Without Roof Holes
Because the GQ Patrol features continuous rolled-steel roof rain gutters, installing a gq patrol sun visor is a straightforward mechanical job that keeps your outer roof skin completely intact:
[Scrape Dirt and Old Wax Out of the Roof Gutter Channels]
│
â–¼
[Fit Protective Rubber Isolator Strips into the Gutter Base]
│
â–¼
[Dry-Fit the Visor Symmetrically Across the Upper Windscreen Header]
│
â–¼
[Check Snorkel Clearance & Make Sure Wiper Blades Sweep Freely]
│
â–¼
[Fit Lower J-Hook Clamps and Hand-Torque Stainless Bolts Evenly]
│
â–¼
[Fasten A-Pillar Secondary Screws with Sikaflex Polyurethane]
│
â–¼
[Check All Fasteners After Your First 100km on Corrugated Tracks]
1. Clean the Gutter Channels
Before picking up a spanner, wash your roof gutters with clean water and wax remover. Red dirt or road grit trapped under your gq patrol sun visor brackets will act like sandpaper once you hit corrugated dirt roads.
2. Fit Protective Rubber Isolators
Never clamp bare metal brackets directly against painted gutters. Slip the supplied protective rubber strips into the gutter channel beneath each bracket foot. This cushions the joint and stops vibration from grinding through your paint to bare metal.
3. Dry-Fitting and Alignment
With a mate helping, set the gq patrol sun visor over the cab. Line it up evenly across the top of the glass, and check that the wiper arms clear the lower edge of the visor during their full sweep arc.
4. Tighten the Gutter Clamps
Fit the lower J-hook clamp plates under the rolled lip of the gutter and run the stainless steel bolts in by hand. Tighten them progressively and evenly with a hand ratchet to around 12 to 14 Nm. Never use an impact gun, as excessive force can buckle the rolled gutter channel.
5. Secondary A-Pillar Screws
For rock-solid stability at 110 km/h, most visors use secondary locating screws on the outer A-pillar door-jamb seam. Dab cold-galvanising zinc primer onto the pilot holes and squirt a healthy dab of automotive polyurethane sealant (such as Sikaflex 221) into each hole before running the screws home. This forms a 100% waterproof seal that stops water leaks and dampens track vibrations.
To finish off your front-end touring build, pair your cab visor with frontal bar work by checking out our Bull Bars category or explore heavy-duty platforms like the Toyota LandCruiser 79 Series BULLBAR Solid to see how proper frontal bars handle animal strike protection.
Aussie Road Rules and Roadworthy Checks
Bolting on an exterior accessory like a gq patrol sun visor means staying compliant with local transport regulations:
- The 11-Metre Road Visibility Rule: Under state vehicle modification standards—including Transport Victoria VSI 8 Vehicle Modification Standards and Transport for NSW Light Vehicle Safety Check Rules—an external gq patrol sun visor is an approved mod as long as it does not intrude into your direct driving sightline. From your normal driving seat, you must maintain an unobstructed view of the road surface 11 metres ahead of your front bumper.
- Deburred Safety Edges: Under national vehicle standards overseen by the Department of Infrastructure ADR Vehicle Standards, all forward-facing metal edges and brackets on a gq patrol sun visor must feature rounded, deburred edges with at least a 5mm radius to prevent injury hazards.
- Wiper Sweep Clearances: Ensure your windscreen wiper arms clear the bottom edge of the visor during their full sweep arc so your wet-weather visibility remains 100% unrestricted.
For ute and tray-back owners building custom flatbeds to carry swags and recovery gear, check out our DIY Tray Kits category and DIY Ute Tray Kit Dual Cab for solid flat-pack setups you can weld together in the shed.
Frequently Asked Questions
Will a GQ Patrol sun visor fit an older MQ Patrol?
Yes. Nissan kept the exact same windscreen frame dimensions, glass rake, and roof rain gutters from the 1980 MQ right through to the end of the GQ in 1997. An authentic gq patrol sun visor fits both model generations identically.
Does fitting a GQ Patrol sun visor require drilling holes into the roof?
No. The main mounting legs clamp straight into your factory rolled-steel roof rain gutters using stainless steel vice brackets, keeping your outer roof skin completely free of holes. Small secondary locating screws fasten into the outer A-pillar door-jamb seam, which are sealed with polyurethane to keep them 100% leak-free.
Will a GQ Patrol sun visor clear my 4WD snorkel?
Yes, provided you choose a dedicated gq patrol sun visor designed with a pre-formed right-hand wing scallop. This cutout clears factory Nissan and popular Safari plastic snorkels. If you run a custom 4-inch stainless steel pipe, dry-fit the visor first to make sure there is plenty of clearance between the pipe and the visor wing.
Does a GQ Patrol sun visor cause wind noise at highway speeds?
When fitted correctly with rubber isolators, an aerodynamic gq patrol sun visor diverts oncoming air smoothly over the cab roof with minimal cabin noise. Choosing an expanded alloy mesh style allows air to flow directly through the blade, providing the quietest possible highway cruising.
Are exterior windscreen visors street legal in Australia?
Yes. A gq patrol sun visor is road legal across all Australian states and territories under standards like Transport Victoria VSI 8. To remain compliant, the visor must preserve an unobstructed view of the road 11 metres ahead of the vehicle and feature smooth, rounded outer edges with a minimum 5mm radius.
Summary: Keeping Your Patrol Cool on Outback Tracks
Fitting a purpose-built gq patrol sun visor is one of the smartest and most practical upgrades you can make to your classic Nissan four-wheel drive. It stops blazing outback sun outside the glass, protects your irreplaceable dashboard vinyl from heat cracking, kills blinding low-angle highway glare, and gives your rig an authentic Aussie touring stance. By choosing a visor with proper snorkel clearance, keeping the underside non-reflective, and clamping into the roof gutters with protective rubber isolators, your Patrol will be ready to tackle any desert track in comfort.
Check out the dedicated GQ Patrol Sun Visor (1980–1997) to grab an authentic shield pressed specifically for your cab, explore our full range in the Sun Visors category for alternative 4WD setups, or browse our comprehensive Bull Bars category to pair your cab shade with heavy-duty frontal animal strike protection.
