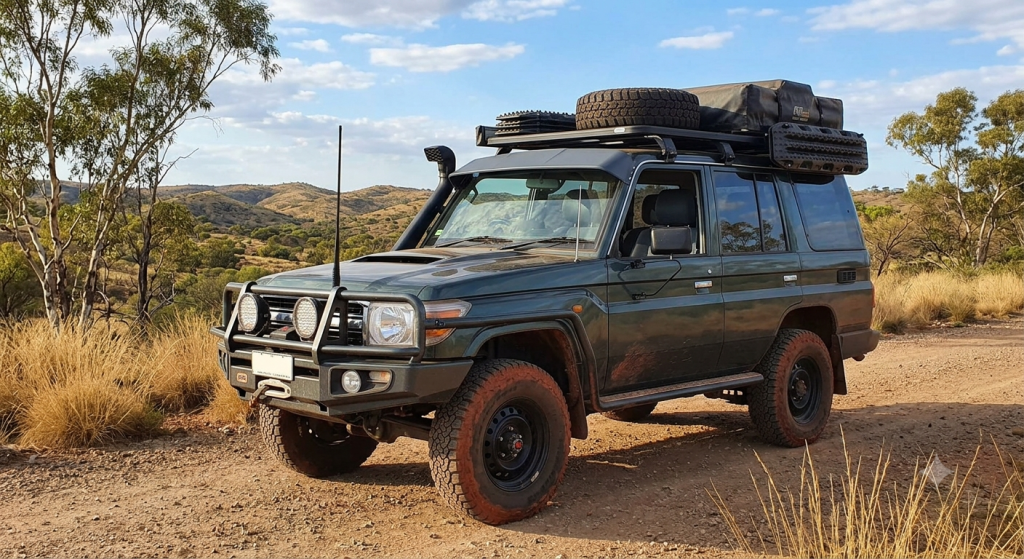

5 Ultimate Steps on How to Fit Exterior Sunvisor 4×4 Rigs Easily

Learning how to fit exterior sunvisor 4×4 accessories is widely recognized by four-wheel drive touring enthusiasts and off-road builders as one of the single most rewarding DIY garage projects. When driving across open tracks during long outback trips, intense overhead sunlight coming over the top edge of your windshield causes driver eye strain and severe visual fatigue. Knowing how to fit exterior sunvisor 4×4 shades allows you to construct an extended overhead shield that blocks blinding solar glare long before light touches your eyes.

Beyond reducing glare, mastering how to fit exterior sunvisor 4×4 units delivers immediate thermal insulation advantages inside your cab. By keeping the top third of your windscreen glass in continuous shade, an exterior visor dramatically lowers cabin heat accumulation during hot summer months. Stopping shortwave UV radiation outside the glass prevents dark dashboards, steering wheels, and trim panels from absorbing thermal energy. Lower cabin temperatures mean your air conditioning unit operates more efficiently, preserving vital engine cooling capacity during heavy off-road low-range driving.

However, retrofitting an aftermarket shade onto your vehicle roofline requires clear planning and precise execution. Unlike simple bolt-on interior accessories, learning how to fit exterior sunvisor 4×4 setups properly means preparing your vehicle to handle high-speed wind resistance, severe chassis flex, and endless corrugated dirt road chatter. Using marine-grade hardware, rubber isolation gaskets, zinc primers, and polyurethane sealants is essential to avoid body rust, roof leaks, or annoying highway wind noise.

This step-by-step DIY guide explains every detail on how to fit exterior sunvisor 4×4 accessories to wagons, utes, and custom touring rigs.

Glare Reduction and Thermal Insulation Dynamics

To appreciate why knowing how to fit exterior sunvisor 4×4 components is so beneficial, it helps to understand solar behavior against automotive glass. Clear laminated windshields allow direct UV radiation to penetrate your vehicle interior. When solar rays strike dark dashboard materials, they transform into infrared heat energy that becomes trapped inside your cab.

Executing how to fit exterior sunvisor 4×4 steps stops this thermal transfer process outside your cabin skin. Shading the upper section of your front windscreen keeps your interior significantly cooler during long highway drives or static camping setups.

                      [ Solar Radiation Behavior Comparison ]
                                         │
        ┌────────────────────────────────┴────────────────────────────────┐
        ▼                                                                 ▼
[ Without 4x4 Exterior Visor ]                                   [ With 4x4 Exterior Visor ]
• Direct solar light strikes windscreen glass                  • Sunlight hits tough exterior visor shield
• Shortwave UV light penetrates windshield                     • Thermal energy reflects into ambient air
• Dark vinyl dash absorbs light heat energy                    • Upper glass stays in continuous shadow
• Trapped thermal energy spikes interior temp                   • Dashboard surface temperatures drop by 15°C
• Air conditioner operates under heavy load                    • Preserves engine cooling & fuel efficiency

Key Touring Advantages:

Lower Ambient Cabin Temps: Learning how to fit exterior sunvisor 4×4 gear reduces dashboard surface heat by up to 15°C on clear summer days.
Dashboard Material Protection: Shielding your interior from direct UV light stops dashboard vinyl from cracking, fading, or warping over time.
Better Visual Comfort: Blocking overhead glare eliminates the constant need to flip down interior sun visors, preserving a clear forward field of view.
Improved Fuel Efficiency: Lowering cabin heat reduces air conditioning load, saving fuel across long outback stretches.

Visor Material Selection: Acrylic vs Fiberglass vs Metal

Before starting how to fit exterior sunvisor 4×4 procedures, you must select the right visor material for your specific touring style. Manufacturers construct exterior visors using three main materials.

                  [ Visor Material Selection Guide ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Molded Smoke Acrylic ]       [ Hand-Laid Fiberglass ]       [ Press-Formed Steel/Alloy ]
• Semi-transparent sight line  • 100% opaque light block      • Maximum trail impact strength
• Pre-finished dark tint       • Easy to custom color match   • Heavy commercial application
• Lightweight flex body        • Highly repairable on trail   • Requires multi-layer paint

1. Molded Dark Smoke Acrylic (Perspex)

A smoke acrylic visor is ideal for touring rigs and daily drivers due to its sleek appearance and semi-transparent optical line.

Overhead Vision: Because acrylic is semi-transparent, you can see overhead traffic lights and low tree branches without leaning forward over your steering wheel.
Elastic Flexibility: High-grade acrylic flexes slightly under high-speed wind drag and chassis twisting, absorbing vibrations without cracking.
Pre-Finished Finish: UV-stabilized dark smoke acrylic arrives ready to fit without needing paint preparation.

2. Hand-Laid Fiberglass Reinforced Plastic (FRP)

A fiberglass visor offers total light blockage, high structural strength, and seamless color matching.

100% Solar Blockade: Fiberglass blocks all direct light, creating a deep shade zone across your upper windshield frame.
Custom Paint Finish: Fiberglass visors feature a smooth gelcoat finish, allowing you to prime and paint the visor to match your 4×4 paint code.
Simple Field Repair: If struck by heavy branches on tight tracks, fiberglass can be repaired easily using standard marine resin kits.

3. Press-Formed Steel or Aluminum

Metal visors are built primarily for heavy fleet work, agricultural machinery, and extreme mining environments. While offering maximum stone impact resistance, metal visors add weight to your roofline and require anti-rust coatings along sheet metal edges.

Technical Performance Breakdown

Comparing key material specs will assist you when executing how to fit exterior sunvisor 4×4 projects:

Performance Metric	Molded Dark Smoke Acrylic	Hand-Laid Fiberglass (FRP)	Fabricated Metal / Alloy
Material Transparency	Semi-transparent smoke	100% Opaque (Solid shade)	100% Opaque (Solid shade)
Solar UV Blockade	Blocks 85%+ UV light	Blocks 100% direct light	Blocks 100% direct light
Paint Finish Need	Pre-finished glossy tint	Requires custom body paint	Requires powder-coat paint
Structural Flexibility	Moderate elastic flex	Rigid composite structure	Rigid sheet structure
Trail Impact Resistance	Good for general touring	High (Easily repaired)	Maximum impact strength
Weight on Cab Roof	Very lightweight (~2.5 kg)	Medium weight (~3.8 kg)	Heavy weight (~5.5+ kg)
Vibration Damping	Absorbs high-speed flex	Needs rubber pad isolation	Needs heavy bracket mounts
Average Kit Price	$240 – $380 AUD	$350 – $580 AUD (+ paint)	$450 – $700 AUD

Aerodynamic Drag and Noise Reduction

Because four-wheel drives have upright windshield profiles, understanding how to fit exterior sunvisor 4×4 units requires managing aerodynamic drag. At highway speeds between 100 km/h and 110 km/h, unvented visors can trap incoming air underneath, creating upward lift and annoying wind noise inside your cab.

                 [ Aerodynamic Airflow Dynamics Comparison ]
                                     │
  ┌──────────────────────────────────┴──────────────────────────────────┐
  ▼                                                                     ▼
[ Unvented Flat Visor Design ]                     [ Sculpted Vented Visor Design ]
• Air traps beneath the visor brow                 • Air enters front pressure relief slots
• Creates upward lift force on mounting feet       • High-velocity air exhausts across roofline
• Causes vibration at high highway speeds          • Equalizes air pressure on bracket mounts
• Increases wind noise inside driver cab           • Eliminates wind noise and roof chatter

To eliminate wind noise, quality how to fit exterior sunvisor 4×4 visor designs feature integrated pressure relief slots or molded channels. These relief vents allow trapped air to equalize across your roofline, stabilizing your visor and keeping your cab quiet during highway cruising.

Tools, Fasteners, and Sealing Equipment

Having the correct tools ready before beginning how tohttps://allmodel4x4spares.com/product-category/sun-visors/ fit exterior sunvisor 4×4 steps guarantees a smooth, leak-free installation:

Tool / Accessory	Specific Recommended Type	Purpose During Fitment
Rivnut Setter Tool	Twin-handle M5 or M6 thread setter tool	Setting threaded steel inserts into A-pillar sheet metal
Threaded Fasteners	316 Marine stainless steel button bolts	Securing visor feet without risk of rust
Polyurethane Sealant	Sikaflex 221 or Sikaflex 291 marine sealant	Sealing drilled pillar holes to prevent water leaks
Anti-Rust Primer	Cold galvanizing spray or zinc primer	Coating raw steel hole edges against corrosion
Drill Bits & Stop	3mm pilot bit, 9mm step bit & depth stop	Drilling clean holes without hitting internal wiring
Isolation Gaskets	1.5mm high-density EPDM rubber sheet	Cushioning brackets to protect vehicle paintwork
Thread Locker	Medium-strength thread locker (Loctite 243)	Locking fasteners against corrugation vibration
Measuring Tape	Flexible tape measure & masking tape	Marking exact centerlines and mounting coordinates

5 Steps on How to Fit Exterior Sunvisor 4×4

Follow this complete 5-stage installation process to securely mount an exterior sunvisor onto your 4×4:

                  [ 5-Stage Installation Sequence ]
                                 │
  ┌───────────────┬──────────────┼──────────────┬──────────────┐
  ▼               ▼              ▼              ▼              ▼
[ Stage 1 ]     [ Stage 2 ]    [ Stage 3 ]    [ Stage 4 ]    [ Stage 5 ]
Mark Centerline  Drill Holes    Seal & Insert  Fit Rubber     Torque Hardware
& Test Fit      with Stop      Rivnut Anchors Gasket Pads    & Test Seals

Step 1: Centerline Alignment and Mock-Up Fitting

Finding the exact center of your windshield header before drilling is vital to ensure your visor sits level across your cab line.

Clean the upper roof line, windscreen rubber seals, and front pillars thoroughly using warm water, detergent, and isopropyl alcohol.
Apply wide strips of painter’s masking tape down both front pillar faces and across the upper roof line to protect paintwork during mock-up fitting.
Measure the overall width of the upper windscreen frame between the outer drip gutters using a flexible measuring tape. Mark the exact center coordinate onto your masking tape.
With an assistant, lift your visor into position across the upper frame. Align the visor center notch directly with your pillar center mark.
Open both front doors fully to check clearance. Confirm that outer bracket feet maintain at least 6mm of space away from door frames and weather rubber seals.
Trace the outer footprints of each mounting bracket foot onto the masking tape with a fine scribe or marker.

Step 2: Precision Hole Drilling with Mechanical Depth Stops

Drilling into your vehicle A-pillar sheet metal requires care to prevent drill bits from plunging into internal wiring looms.

                 [ A-Pillar Drilling Cross-Section ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Outer Sheet Metal ]    [ Internal Air Gap ]           [ Inner Pillar / Loom ]
Drill outer skin only    Maintain 10mm drill clearance   Do NOT allow bit to contact
(approx 1.2mm steel).    using a mechanical stop collar. internal wiring bundles.

Punch a small guide dimple into the center of each marked coordinate using a center punch to prevent your drill bit from slipping.
Secure a mechanical drill depth stop collar onto a 3mm pilot drill bit, adjusting it so no more than 10mm of the bit tip extends past the collar.
Drill pilot holes carefully at medium speed with steady inward pressure.
Enlarge pilot holes using a step drill bit until the hole diameter matches your M5 or M6 rivnut sleeve (7mm for M5, 9mm for M6).
Critical Swarf Cleanup: Run a small pickup magnet over each drilled hole to capture all steel filings. Leaving metal shavings on paintwork will cause rust spots later.

1.Mark Centerline & Mounting Coordinates:Exact measurement prevents crooked bracket alignment.

With the visor held securely in place, punch guide marks through your mounting template onto your pillar masking tape. Check all side-to-side measurements again before drilling.

2.Drill Pillar Holes Using Depth Stop Collars:Prevents bit contact with internal electrical looms.

Attach a mechanical drill stop collar set to a 10mm depth limit. Drill pilot holes using a sharp 3mm bit, then enlarge holes using a step bit to match your rivnut sleeve size.

3.Apply Zinc Inhibitor and Polyurethane Sealant:Essential barrier against body sheet metal rust.

Clean away all metal filings using a magnet. Paint raw hole edges with two coats of cold galvanizing zinc primer. Inject a heavy bead of Sikaflex marine sealant into each hole opening.

4.Set Threaded Steel Rivnut Anchors:Provides a permanent, heavy-duty threaded anchor.

Thread an M5 or M6 steel rivnut onto your insert tool mandrel. Push the rivnut into the wet sealant and squeeze the tool handles firmly to expand the anchor inside the pillar skin.

explore our complete range of 4x4 exterior accessories and sunvisors

Step 3: Anti-Corrosion Sealing and Rivnut Anchor Insertion

Unsealed drill holes in an off-road vehicle will rust quickly when exposed to rain, mud, and water crossings. Follow this multi-stage sealing process to ensure a leak-proof setup.

                 [ Multi-Barrier Sealing Assembly ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Zinc Anti-Rust Coating ]  [ Polyurethane Sealant ]     [ Compressed EPDM Rubber ]
Protects raw drilled steel  Injected into rivnut cavity  Fills micro gaps between
edges against moisture.     to block water ingress.      bracket foot and chassis paint.

Use a deburring tool to smooth away sharp metal burrs around the outer edges of each drilled hole.
Paint two coats of cold galvanizing zinc primer onto the raw metal hole edges using a small swab, allowing the paint to dry completely.
Inject a generous bead of Sikaflex 221 or 291 polyurethane sealant directly into each hole cavity.
Thread a steel M5 or M6 rivnut insert onto your rivnut tool mandrel. Push the insert through the wet sealant until its outer lip sits flat against the pillar metal skin.
Squeeze the rivnut tool handles firmly until the insert collapses and locks tightly against the back of the metal skin. Unthread the tool mandrel carefully.
Wipe away excess polyurethane sealant squeezed out around the rivnut flange using a clean cloth moistened with mineral spirits.

Step 4: Rubber Isolation Pads and Bracket Fastening

Bolting metal mounting brackets directly against vehicle paint creates hard contact points that wear through paint layers under road vibration, inviting hidden rust.

             [ Bracket Fastener Assembly Order ]
                            │
  ┌─────────────────────────┼─────────────────────────┐
  ▼                         ▼                         ▼
[ Stainless Button Bolt ] → [ Lock Washer ]        → [ Bracket Foot ]
                            │
                            ▼
[ EPDM Cushion Pad ]    → [ Polyurethane Bead ]    → [ Threaded Rivnut ]

Trace the physical outline of each bracket foot onto a 1.5mm sheet of high-density EPDM rubber material. Cut out your custom isolation pads using sharp scissors.
Punch matching bolt pass-through holes through the EPDM rubber pads.
Position the custom rubber pads directly over the installed rivnuts on your front pillars.
Lift your visor into position, setting its metal bracket feet flat on top of the EPDM rubber cushion pads.
Dip the threads of your 316 marine-grade stainless steel button bolts into medium-strength thread locker (Loctite 243).
Thread the stainless bolts through the bracket feet and rubber pads into your rivnut threads by hand to prevent cross-threading.

Step 5: Final Alignment Check, Torqueing, and Water Testing

With all hardware started loosely, perform final alignment checks before securing your visor permanently:

Step back 5 meters from your front bumper to confirm your visor sits completely level across the roofline and runs parallel to your top windshield rubber molding.
Using a hex wrench, tighten all mounting bolts in an alternating cross pattern to spread clamping pressure evenly across your bracket feet. Torque M5 bolts to 4.5 Nm or M6 bolts to 7.5 Nm. Do not over-tighten, as excessive torque can dent thin pillar sheet metal.
Open and close both front doors slowly to confirm that door frames clear the visor ends cleanly without rubbing against brackets or shade material.
Perform a water leak test: direct a steady stream of water from a garden hose around your pillar mounting brackets for 5 minutes while an assistant inspects interior roof linings for dampness.

Road Transport Regulations and ADR Standards

Before driving on public highways, verify that your installed visor meets national road transport safety standards. In Australia, vehicle accessory installations are governed by transport safety guidelines published on the Federal Register of Legislation under Australian Design Rule ADR 12/00 (Driver Field of View).

                 [ Road Safety & Legal Requirements ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Driver Field of View ]    [ Edge Radius Safety ]       [ Vehicle Dimensional Limits ]
Visor frame must not extend Visor & bracket edges must   Overall accessory width must
below primary wiper sweep   feature minimum 2.5mm - 5mm  stay within the outer body
zone on front glass.        rounded radius corners.      line of your 4x4 cab.

Essential Legal Compliance Points:

Wiper Swept Area Clearance: The bottom edge of your visor must sit above the primary forward view zone cleared by your front windshield wiper blades.
External Edge Radii: As outlined by Standards Australia, all forward-facing brackets and visor edges must feature smooth, rounded corners (minimum 2.5mm to 5.0mm radius) to minimize injury risks in pedestrian accidents.
Vehicle Width Restrictions: The total overall width of your fitted visor assembly must not extend past the outer body line of your vehicle cab.

Long-Term Maintenance for Outback Touring

Even a professionally installed visor needs regular inspections to handle long miles over corrugated tracks and dusty outback highways.

                  [ Preventative Maintenance Schedule ]
                                    │
    ┌───────────────────────────────┼───────────────────────────────┐
    ▼                               ▼                               ▼
[ Initial 100 km Check ]       [ Bi-Annual Hardware Audit ]    [ Annual Sealant Inspection ]
Re-torque all stainless bolts  Inspect rivnuts for movement;   Examine polyurethane beads
after initial highway run to   re-apply thread locker if       around brackets; touch up
settle rubber gaskets.         fasteners show looseness.       weatherproofing as needed.

1. Post-Installation Fastener Torque Check

New EPDM rubber isolation pads compress slightly during your first highway drive. After completing 100 km of driving, re-check all mounting bolts with a hex key and tighten them back to specification. This simple check prevents highway vibration from loosening hardware later.

2. Corrugation Vibration Audits

Corrugated dirt roads generate constant vibration throughout your vehicle frame. Make it a habit during long touring trips to check your visor brackets during morning pre-trip inspections. Make sure mounting bolts remain tight and check visor surfaces for hairline stress marks around bolt holes.

3. Cleaning and Surface Care

Acrylic Visors: Wash dark smoke acrylic perspex using warm water, mild car wash detergent, and a soft microfiber mitt. Never use ammonia-based glass cleaners or paper towels on acrylic surfaces, as harsh chemicals and coarse paper fibers will scratch dark tint finishes.
Fiberglass Visors: Maintain painted fiberglass visors using standard automotive paint care methods. Apply carnauba wax or synthetic paint sealer twice a year to protect color-matched paint coats from UV fading.

Key Takeaway Checklist for a Perfect Installation

To summarize your process on how to fit exterior sunvisor 4×4 setups, make sure you complete each of these critical steps before heading out on your next trip:

Select Suitable Materials: Pick dark smoke acrylic for pre-finished translucency or fiberglass for custom color-matched paintwork.
Use Mechanical Depth Stops: Always fit a drill stop collar set to 10mm when drilling pillar sheet metal to safeguard internal wiring looms.
Clean Metal Filings: Capture all drill filings with a magnet to stop rust spots from forming on your paint.
Apply Multi-Barrier Sealing: Treat raw hole edges with cold galvanizing zinc primer and inject Sikaflex polyurethane sealant into rivnut openings.
Fit EPDM Rubber Pads: Always place rubber isolation cushion gaskets beneath metal bracket feet to protect vehicle paintwork.
Verify Legal Clearance: Ensure the bottom edge of your visor stays above your windshield wiper sweep line.

Knowing how to fit exterior sunvisor 4×4 accessories protects your cabin from thermal heat, eliminates blinding glare, and adds classic touring style to your vehicle. By using marine-grade stainless hardware, steel rivnut anchors, zinc anti-rust primers, and marine polyurethane sealants, you ensure your setup remains rigid, silent, and waterproof for many years to come!
