Landcruiser 79 Series Bull Bar Selection: Heavy-Duty Protection Guide
When outfitting a Toyota Landcruiser 79 Series for remote outback touring, station work, or heavy-duty commercial utility, selecting a rugged landcruiser 79 series bull bar is the single most critical modification you can make. Known throughout Australia as the ultimate 4WD workhorse, the 79 Series—spanning single-cab, double-cab, and workmate configurations—demands a frontal protection system that matches its unbreakable reputation.
Fitting an upgraded landcruiser 79 series bull bar provides a physical shield for your radiator, intercooler, and engine bay against destructive high-speed animal strikes on regional highways. Additionally, a dedicated landcruiser 79 series bull bar supplies the structural foundation required to mount heavy recovery winches, high-output LED driving lights, and communications antennas.
However, choosing the ideal landcruiser 79 series bull bar involves balancing physical strength against front axle load limits, Gross Vehicle Mass (GVM) restrictions, Australian Design Rules (ADR), and Toyota Safety Sense radar integration on newer models. This guide breaks down material selection, front suspension dynamics, recovery capabilities, and legal compliance to help you make an informed decision.
1. Why the 79 Series Demands Heavy-Duty Frontal Protection
Unlike lighter dual-cab utility vehicles, the Toyota Landcruiser 79 Series is engineered for severe duty cycles. Operating in remote pastoral regions, timber blocks, and mining sites exposes the vehicle’s front profile to continuous hazards.
[ Toyota Landcruiser 79 Front Assembly ]
│
┌───────────────────────────────┼───────────────────────────────┐
▼ ▼ ▼
[ Engine Cooling Stack ] [ Front Chassis Rails ] [ Factory Coil Springs ]
Requires heavy shielding Provides rigid foundation Rated for factory tare;
for radiator & intercooler for high-capacity winches heavy bars require
against wildlife strikes without frame twisting stiffer coil upgrades
Radiator & Intercooler Protection: Prevents stray branches, debris, or wildlife from puncturing the cooling pack, which could leave you stranded in remote country.
Rigid Winch Mounting: Incorporates a high-tensile steel mounting cradle capable of handling 9,500 lb to 12,000 lb single-line winch recoveries.
Auxiliary Mount Infrastructure: Provides dedicated mounting points for high-output driving lights, fog lamps, and dual UHF aerials.
2. Steel vs. Aluminium: Selecting the Right Bar Material
Choosing the right material for your landcruiser 79 series bull bar comes down to evaluating structural strength against overall weight.
Feature / Metric
Structural Steel Bar
Marine-Grade Alloy Bar
Average Bare Weight
65 kg to 95 kg
35 kg to 55 kg
Material Thickness
3mm – 5mm steel plate; 63mm tubing
6mm alloy plate; 75mm heavy tubing
Tensile Strength
High (~400–500 MPa Structural Steel)
Moderate (~270–310 MPa 5083 Alloy)
Impact Resistance
Maximum (resists severe roo strikes)
Moderate (absorbs medium impacts)
Winch Mounting
Integrated structural steel cradle
Separate internal steel chassis cradle
Corrosion Resistance
E-coated & powder coated
Superior natural rust resistance
GVM Impact
Higher front-axle mass
Preserves available front payload
[ Structural Steel Landcruiser 79 Series Bull Bar ]
│
[ Large Animal Collision ] ──► [ Outer Steel Wings Resist Bending ]
│
▼
[ Impact Energy Absorbed ]
│
▼
[ Chassis Brackets Collapse ]
[ Triggers Airbags under ADR ]
High-Tensile Steel Options
A steel landcruiser 79 series bull bar remains the benchmark for remote touring and pastoral work. Structural steel withstands repeated heavy impacts without folding backward into your headlights or radiator. If you travel remote highways at night where cattle and kangaroo strikes are common hazards, a steel landcruiser 79 series bull bar provides unmatched peace of mind.
Marine-Grade Aluminium (Alloy) Options
For drivers operating in coastal environments or looking to keep tare weight as low as possible, an alloy landcruiser 79 series bull bar offers a corrosion-resistant alternative. Modern alloy bars utilize 6mm thick marine-grade aluminium plate coupled with an internal steel chassis cradle. This design handles high recovery loads while saving 30 kg to 40 kg off your front axle compared to steel equivalents.
3. Front Axle Load Ratings, GVM Limits, and Suspension Upgrades
Installing a heavy landcruiser 79 series bull bar and a 12,000 lb recovery winch significantly impacts your vehicle’s front-end weight distribution.
Understanding the 79 Series Front Axle Limit
The factory Toyota Landcruiser 79 Series features a solid front axle suspended by live coil springs. While incredibly durable, the factory front Gross Axle Weight Rating (GAWR) is strictly limited (typically around 1,480 kg to 1,540 kg depending on the exact model year).
Factory 79 Series Front Tare Weight
+ Heavy Steel Bull Bar (~80 kg)
+ 12,000 lb Electric Winch with Steel Cable (~38 kg)
+ Pair of 9-inch Heavy LED Driving Lights (~8 kg)
+ Dual Battery System Under Bonnet (~25 kg)
------------------------------------------------
= Total Added Front Axle Load: ~151 kg!
Adding over 150 kg directly over the front bumper compresses the factory front coil springs. This reduces suspension compression travel, causes severe nose-diving during heavy braking, and leads to accelerated tire wear.
[ Front Suspension Response to Added Load ]
│
┌──────────────────────────────┴──────────────────────────────┐
▼ ▼
[ Factory Coil Springs ] [ Heavy-Duty Upgraded Springs ]
Sags 35mm–50mm under bar weight; Maintains legal ride height;
frequently hits bump stops restores full suspension articulation
Necessary Suspension Adjustments
If you select a heavy steel landcruiser 79 series bull bar, budget for a front suspension upgrade:
Upgraded Heavy-Duty Coil Springs: Install linear or progressive coils rated specifically for a constant 100 kg+ front accessory load.
Heavy-Duty Shock Absorbers: Upgrade to large-bore gas or remote-reservoir shocks to control front-end rebound and dampening over corrugated outback tracks.
GVM Upgrade Kits: If your build includes a rear tray, canopy, dual batteries, and heavy accessories, opt for an officially certified GVM upgrade kit to remain road-legal.
Bull bars for the 79 Series are manufactured in several physical configurations to suit different operational needs.
[ Landcruiser 79 Series Bull Bar Styles ]
│
┌────────────────────────────┼────────────────────────────┐
▼ ▼ ▼
[ Commercial Triple Hoop ] [ Single Hoop Touring ] [ Hoopless / Bumper Replacement ]
Full headlight & bonnet Sleek central grille protection; High clearance profile;
protection; best for roos popular for mixed touring ideal for technical rock crawling
1. Commercial Triple Hoop Bull Bar
Best Suitable For: Remote touring, agricultural station work, and long-distance outback driving.
Design Layout: Features a large 60mm–63mm center tube protecting the radiator grille, flanked by twin outer hoops protecting the headlights and bonnet wings.
Verdict: Offers maximum physical protection against animal strikes. A triple-hoop landcruiser 79 series bull bar is the strongest design for high-risk rural driving.

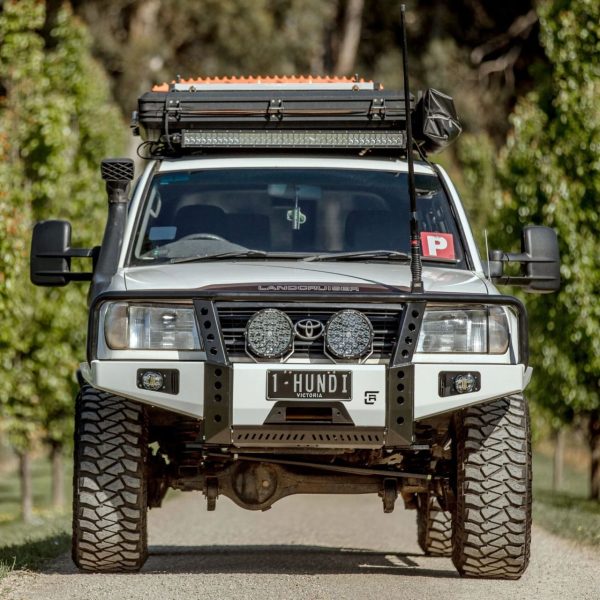

2. Single Hoop / Center Loop Bar
Best Suitable For: General touring, highway driving, and mixed 4WD use.
Design Layout: Incorporates a robust central hoop protecting the main radiator, leaving headlight areas clear for a modern appearance.
Verdict: Reduces total bar weight while maintaining critical protection for your engine cooling stack.
3. Stealth Hoopless (Bumper Replacement) Bar
Best Suitable For: Technical offroad driving, rock crawling, and custom builds.
Design Layout: Completely replaces the lower bumper section with a heavy steel skirt, leaving the upper grille exposed.
Verdict: Significantly improves front approach angles over steep terrain while housing a recovery winch cleanly. However, it offers less protection against tall wildlife.
5. ADR Compliance, Safety Radar & Australian Road Legality
Any landcruiser 79 series bull bar fitted to your vehicle must comply with strict Australian road transport regulations.
Australian Design Rules (ADR 69/00 & 73/00)
For airbag-equipped 79 Series models (2016+ builds), your chosen landcruiser 79 series bull bar must feature certified airbag compatibility.
[ Crash Impact Event ]
│
▼
[ Certified Landcruiser 79 Series Bull Bar ]
│
┌──────────────────────────────┴──────────────────────────────┐
▼ ▼
[ Accordion Brackets Collapse ] [ SRS Airbags Deploy ]
Absorbs kinetic impact energy Triggers within milliseconds
without delaying crash sensors per ADR 69/73 safety standards
Engineered accordion mounting brackets absorb impact energy during a collision, folding at precise thresholds to trigger the vehicle’s SRS airbag sensors without delay.
Toyota Safety Sense (TSS) Integration
Facelifted 79 Series models feature autonomous safety technologies, including millimeter-wave radar modules mounted in the front grille.
A modern landcruiser 79 series bull bar must feature laser-cut sensor cutouts or non-interfering acrylic windows.
Blocking or misaligning the TSS radar unit causes instrument cluster errors and disables pre-collision safety systems.
A fully equipped landcruiser 79 series bull bar provides secure winch housing and rated recovery points for tough offroad extractions.
6. Installation Considerations: DIY vs Professional Fitting
Fitting a landcruiser 79 series bull bar requires careful alignment, proper tool selection, and correct torquing procedures.
[ Unbox & Inspect Bar ] ──► [ Mount Steel Chassis Cradle ] ──► [ Install Electric Winch ]
│
[ Final Alignment & Re-Torque ] ◄── [ Wire Lights & Sensors ] ◄────────┘
Key Installation Steps
Chassis Preparation: Unbolt factory bumper components and inspect the front chassis rails.
Mounting Cradle Attachment: Bolt the heavy-duty steel cradle directly into the 79 Series frame using high-tensile fasteners.
Winch & Light Installation: Position your recovery winch inside the cradle before securing the outer bar shell. Wire auxiliary LED lights and indicators into the factory loom.
Body Alignment: Maintain a 15mm to 20mm gap between the bar wings and the bodywork to account for chassis flex when driving offroad.
If you lack high-torque wrenches, lifting equipment, or automotive electrical experience, utilizing a professional 4WD fitting center ensures your installation remains fully compliant and safe.
7. Decision Matrix: Selecting Your 79 Series Bull Bar
Use this decision matrix to determine whether a steel or alloy landcruiser 79 series bull bar is best suited for your setup:
[ What Are Your Primary Driving Conditions? ]
│
┌────────────────────────────┴────────────────────────────┐
▼ ▼
[ Remote Outback & Pastoral Highways ] [ Coastal Driving & Light Touring ]
│ │
▼ ▼
• High risk of cattle & roo strikes • Focus on rust resistance & low weight
• Planning heavy 12,000lb winch pulls • Preserving payload for heavy tray/canopy
• Upgrading front coil springs • Stock or light suspension setup
│ │
▼ ▼
[ CHOOSE STEEL BULL BAR ] [ CHOOSE ALLOY BULL BAR ]
8. Summary: Equipping Your 79 Series for Australian Conditions
Selecting the right landcruiser 79 series bull bar ensures your vehicle is ready for the toughest conditions Australia has to offer. By matching your choice of material, weight, and style profile to your driving requirements, you protect your engine bay while maintaining full road legality and safety compliance.
Pairing yourlandcruiser 79 series bull bar with a high-capacity recovery winch and upgraded front springs delivers a complete, reliable protection package that will serve your 79 Series for years to come.
