Executing a precise landcruiser 79 series sun visor installation is one of the single most impactful upgrades you can perform on your V8 workhorse or dual-cab touring expedition rig. While the Toyota LandCruiser 70 Series platform is legendary for its indestructible chassis and mechanical longevity, its flat, upright factory windscreen design leaves the cabin vulnerable to intense low-angle solar glare during early morning and late afternoon outback driving. Fitting a dedicated landcruiser 79 series sun visor creates an external physical canopy that intercepts blinding sunlight before it hits the glass, drastically reducing interior heat buildup and eliminating driver eye fatigue across grueling 1,000-kilometer desert runs.
For remote-area contractors, mining operators, and self-sufficient overlanders, a proper landcruiser 79 series sun visor installation demands absolute precision regarding A-pillar bracket alignment, wind drag management, and waterproof sealing. Because the heavy-gauge steel cab of a 79 Series encounters intense high-speed wind buffeting and severe corrugated road vibrations, choosing a high-impact optical acrylic or composite shield supported by robust stainless steel hardware is paramount. Whether you are outfitting a single cab utility or a chopped dual cab, mastering every phase of a landcruiser 79 series sun visor project ensures your setup remains completely weather-tight, vibration-free, and structurally secure over the roughest tracks.
In this master technical guide, we break down the 7 vital operational steps required for a flawless landcruiser 79 series sun visor installation. From selecting UV-stabilized cast acrylic sheet materials and positioning stainless steel pillar brackets to applying neutral-cure polyurethane rust sealants, EPDM rubber isolation pads, and transport compliance checks, this guide provides the ultimate framework for your vehicle.
Understanding the aerodynamic loads and roof pillar mechanical forces involved in a landcruiser 79 series sun visor installation is essential to preventing panel fatigue or cabin water leaks.
[ Aerodynamic & Mechanical Architecture of a LandCruiser 79 Series Sun Visor ]
│
┌──────────────────────────────────────────┴──────────────────────────────────────────┐
▼ ▼
[ High-Impact Molded Acrylic Shield Assembly ] [ A-Pillar Structural Mounting Bracket Matrix ]
• 4mm to 5mm UV-stabilized optical grade cast acrylic • Stainless steel or zinc-plated structural mounting brackets
• Tapered lead edge channels airflow upwards over cab roof • Stainless steel blind rivets or rubber expansion nuts
• Prevents low-angle solar glare and cabin thermal buildup • Neutral-cure polyurethane sealant protects drill holes
• Dampened by continuous stainless or powder-coated frames • Heavy EPDM rubber isolation pads prevent paint chafing
When traveling at highway speeds, an exterior cab visor encounters continuous air resistance that exerts uplifting and downward pressure on its mounting brackets. A successful landcruiser 79 series sun visor installation relies on stainless steel or heavy-gauge powder-coated steel side brackets fastened securely into the A-pillar door jambs or outer cab roof channels. Distributing these clamping forces evenly across multiple fastener points during your landcruiser 79 series sun visor project prevents localized sheet metal stretching or fatigue cracks around drill holes.
Furthermore, applying a neutral-cure marine polyurethane sealant (such as Sikaflex-221 or 291) inside every drilled pilot hole before driving fasteners home is a critical phase of any landcruiser 79 series sun visor setup. Because the vehicle’s A-pillar houses internal structural box sections, preventing water ingress during heavy downpours or high-pressure car washes guarantees that your landcruiser 79 series sun visor will never cause internal roof pillar rust or headliner dampness.
Fitting an exterior acrylic visor onto your 79 Series cab requires methodical alignment, drilling, sealing, and torquing procedures. Here are the 7 fundamental operational stages to complete during your landcruiser 79 series sun visor installation:
Before beginning a landcruiser 79 series sun visor installation, thoroughly wash the roofline, A-pillars, and top windscreen frame with isopropyl alcohol to remove wax, road grime, and dust film.
Unpack your kit and inspect the 4.5mm optical-grade cast acrylic shield, stainless side brackets, center support stay, rubber isolators, and mounting hardware for your landcruiser 79 series sun visor.
Position the visor loosely across the top edge of the windscreen during your landcruiser 79 series sun visor installation. Use a metric tape measure to verify equal side margins from the A-pillar door rubbers.
With the visor centered during your landcruiser 79 series sun visor installation, mark bracket hole coordinates onto the A-pillar metal sheet using a fine felt marker or center punch.
Fit a cobalt step drill bit with an adjustable depth stop to drill clean pilot holes through the outer cab pillar sheet without striking internal wiring looms during your landcruiser 79 series sun visor installation.

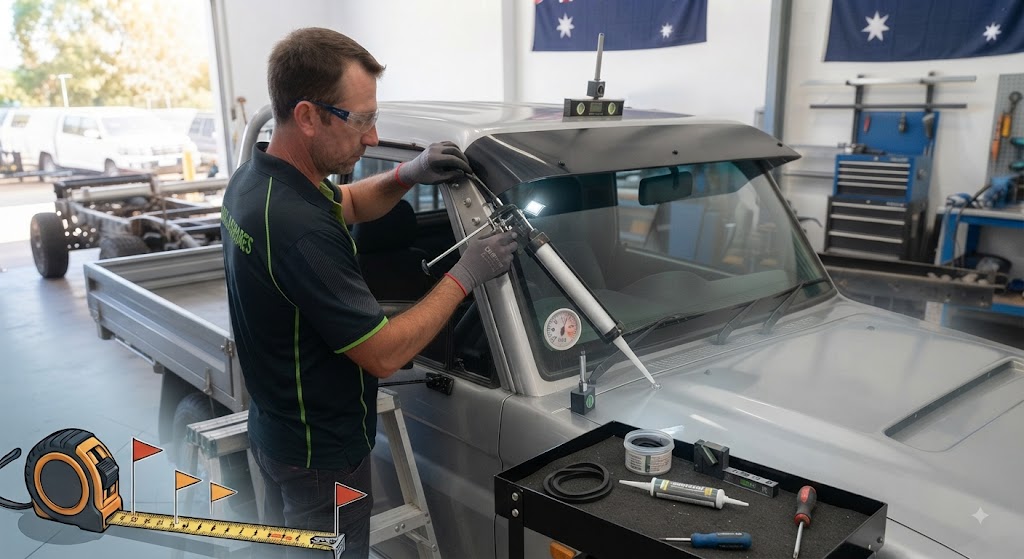

Inject neutral-cure polyurethane sealant directly into every open drill hole prior to bracket attachment—a vital waterproofing step in every landcruiser 79 series sun visor installation.
Place EPDM rubber isolation pads underneath the stainless side mounting brackets during your landcruiser 79 series sun visor installation to prevent metal-on-metal paint abrasion and absorb road chatter.
Evaluating physical properties helps builders select the correct shield style and bracket layout for their landcruiser 79 series sun visor:
| Specification / Feature | Optical Cast Acrylic Visor | High-Impact Polycarbonate Visor | Molded Fibreglass Cab Visor | Stainless Steel Mesh Shade |
| Material Thickness | 4.0mm – 5.0mm Cast Acrylic | 3.5mm – 4.5mm Polycarbonate | 3.0mm Reinforced GRP | 1.5mm Woven Stainless Wire |
| UV Resistance Rating | Exceptional (Will Not Yellow) | Moderate (Requires UV Coating) | High (Painted Gelcoat Finish) | Impervious to UV Rays |
| Average Assembly Weight | 2.5 kg – 4.2 kg complete | 2.2 kg – 3.8 kg complete | 4.5 kg – 7.0 kg complete | 3.0 kg – 5.0 kg complete |
| Wind Drag Coefficient | Low (Tapered Airflow Curve) | Low (Tapered Airflow Curve) | Moderate (Solid Front Lip) | High (Mesh Surface Drag) |
| Glare Reduction Efficiency | 85% – 95% Light Filtered | 80% – 90% Light Filtered | 100% Solid Shade Block | 60% – 75% Light Filtered |
| Waterline Ingress Risk | Zero (When Correctly Sealed) | Zero (When Correctly Sealed) | Zero (When Correctly Sealed) | Zero (When Correctly Sealed) |
| Offroad Vibration Rating | High (With Center Stay) | High (With Center Stay) | Moderate (Heavy Rigid Body) | Moderate (Frame Flexing) |
Selecting high-quality material components determines how your landcruiser 79 series sun visor performs under extreme heat, freezing temperatures, and heavy wind buffeting.
[ Material Engineering for a LandCruiser 79 Series Sun Visor ]
│
┌──────────────────────────────────┴──────────────────────────────────┐
▼ ▼
[ Optical-Grade Cast Acrylic Sheet (PMMA) ] [ Stainless Steel (304/316 Grade) Bracketry ]
• Superior optical clarity prevents driver visual distortion • Yield strength resists high-speed wind deflection forces
• Natural UV stability prevents yellowing and surface cracking • Powder-coated or polished finish resists coastal salt spray
• High scratch resistance compared to standard polycarbonate • Rigid mounting geometry keeps visor aligned across corrugated tracks
• Flexible memory retains shape across extreme thermal cycles • Fitted with EPDM rubber buffers to protect factory vehicle paint
Choosing 4.5mm optical-grade cast acrylic (Polymethyl Methacrylate) for a landcruiser 79 series sun visor provides thermal stability and optical clarity. Unlike cheaper extruded plastics that warp or yellow after prolonged exposure to sunlight, cast acrylic retains its structural shape and deep smoke tint across severe desert heat cycles. An acrylic landcruiser 79 series sun visor filters harmful ultraviolet radiation while allowing drivers to maintain full forward visibility of traffic lights and overhead signage.
Pairing your acrylic shield with 304 or 316-grade stainless steel mounting brackets is essential for a long-lasting landcruiser 79 series sun visor. Stainless steel brackets resist rusting from trapped rain moisture and road salt. Furthermore, using stainless steel fasteners equipped with nylon-insert locknuts during your landcruiser 79 series sun visor installation ensures hardware cannot back off due to engine harmonics or road corrugation vibrations.
Follow this structured practical sequence to complete your landcruiser 79 series sun visor installation safely and efficiently.
1.Inspect Component Inventory and Prepare Cab Surfaces:Unpack kit, check acrylic panel for blemishes, and clean A-pillars.
Unpack your kit and check the acrylic panel for blemishes. Clean the vehicle roofline and A-pillar door jambs with alcohol wipes to prepare for your landcruiser 79 series sun visor installation.
2.Align Visor Shield and Mark Pilot Hole Locations:Position acrylic panel, check side margins, and mark bracket hole points.
Dry-fit the visor assembly across the top windscreen edge, measure side clearances to ensure exact centering, and mark hole coordinates onto the pillar sheet for your landcruiser 79 series sun visor.
3.Drill Pillar Holes and Apply Water Barrier Sealant:Drill pilot holes using depth stops and inject neutral-cure polyurethane.
Drill pilot holes into the marked A-pillar locations using a cobalt bit fitted with a depth stop. Fill each drill hole with marine polyurethane sealant to protect your landcruiser 79 series sun visor against rust.
4.Mount Side Support Brackets and Center Windstay:Insert rubber pads, attach side brackets, and secure stainless blind rivets.
Place EPDM rubber pads beneath the side brackets and fasten them securely with stainless blind rivets or nutserts. Secure the central windstay to complete structural mounting for your landcruiser 79 series sun visor.
5.Mount Acrylic Panel, Torque Fasteners, and Inspect:Position acrylic panel into brackets, tighten locknuts, and test security.
Insert the acrylic panel into its bracket slots, torque stainless button-head screws with nylon locknuts to specification, peel off protective film, and inspect your completed landcruiser 79 series sun visor.
explore our complete range of 4x4 armor, side steps, and rock sliders
Every completed landcruiser 79 series sun visor installation must satisfy national transport regulations. In Australia, exterior vehicle body attachments are regulated by standards published by the Federal Register of Legislation under Australian Design Rules ADR 12/00 (Glare Reduction in Field of View) and ADR 42/00 (General Safety Requirements).
[ ADR Safety Compliance Criteria ]
│
┌────────────────────────────────┼────────────────────────────────┐
▼ ▼ ▼
[ Forward Field of View Standards ] [ Maximum Vehicle Projection ] [ Edge Radius & Safety Rules ]
• Must not obscure driver view • Must not extend beyond the • All exposed bracket edges
of traffic control signals outer width of door mirrors must have minimum 2.5mm radius
Maintaining your exterior visor after completing a landcruiser 79 series sun visor installation preserves optical transparency and prevents surface scratches.
