5 Smart Steps to Install a Nissan Patrol GU Sunvisor Correctly (2026)

Installing an exterior nissan patrol gu5 Ultimate Steps to Install a Nissan Patrol GU Exterior Sunvisor Perfectly

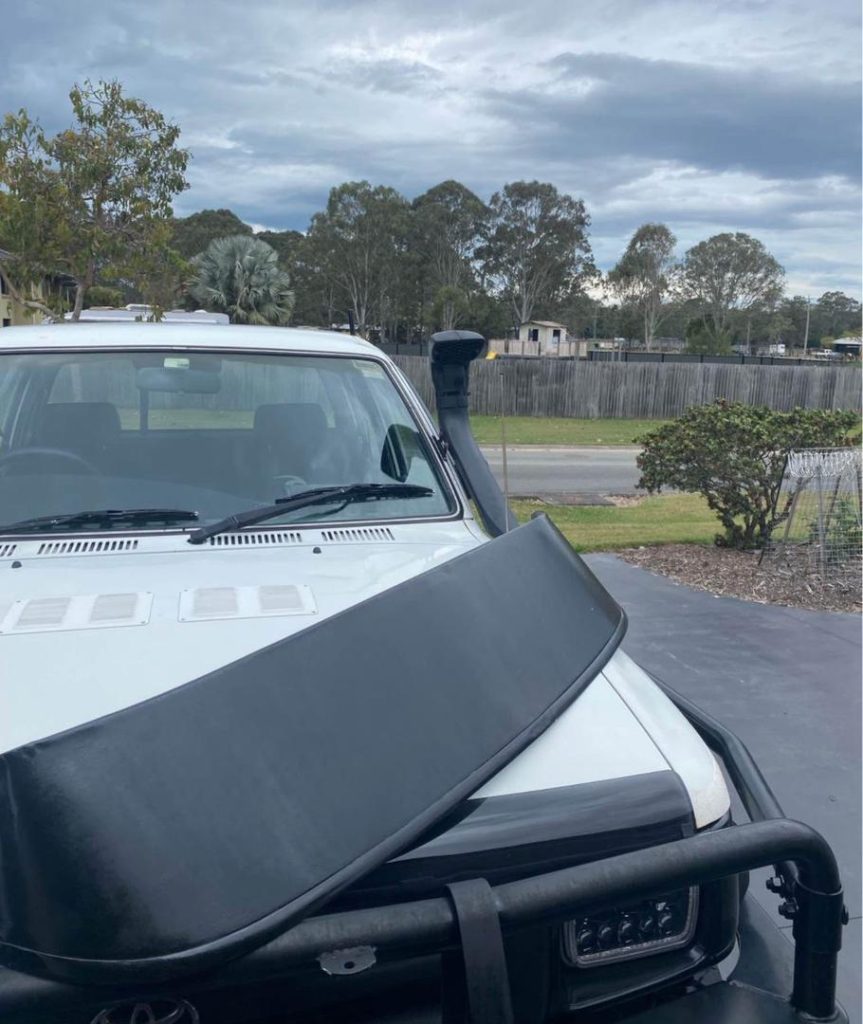

Installing a high-performance nissan patrol gu exterior sunvisor is widely recognized among Australian four-wheel drive touring enthusiasts as one of the single most effective upgrades you can make to your rig. When you are traveling across vast stretches of remote outback track, direct solar glare coming over the top lip of your windshield frame creates intense driver visual fatigue. The Y61 platform features a tall glass profile that receives heavy direct sunlight during early morning and late afternoon driving hours. Fitting a dedicated nissan patrol gu exterior sunvisor creates an extended overhead shield that intercepts harsh solar rays long before blinding light reaches your eyes.

Beyond reducing driver eye strain, a sturdy nissan patrol gu exterior sunvisor delivers immediate thermal insulation benefits for your vehicle interior. By keeping the top third of your windscreen glass in permanent shade, an exterior visor dramatically lowers ambient cabin temperature spikes during hot summer trips. This physical barrier stops solar radiation before it hits dark interior components like your vinyl dashboard or leather-wrapped steering wheel cover. Lower interior heat levels mean your air conditioning system does not have to work as hard, which preserves vital engine cooling capacity and improves overall fuel efficiency when towing heavy off-road trailers across long distances.

However, retrofitting an aftermarket shade onto your vehicle roofline requires proper planning and precise physical execution. Unlike clip-on interior accessories, a heavy-duty nissan patrol gu exterior sunvisor must withstand high-speed aerodynamic drag forces, extreme chassis flex during off-road articulation, and severe corrugation chatter on rough dirt roads. Incorrect mounting can lead to water leaks inside your roof lining, rust spots on your A-pillars, or annoying wind noise at highway speeds.

This complete guide breaks down every aspect of fitting a nissan patrol gu exterior sunvisor on both wagon and cab-chassis models. We cover everything from material selection and pressure relief venting to hole drilling techniques, marine sealing, rubber isolation gaskets, and road legal requirements.

Solar Glare and Thermal Reduction Performance

To understand why a nissan patrol gu exterior sunvisor is such an essential touring modification, it helps to examine how sunlight behaves when striking automotive glass. Clear laminated windshield glass allows shortwave solar light to pass directly into your cabin structure. When this light energy hits dark interior surfaces, it converts into longwave infrared thermal energy that becomes trapped inside your vehicle cab.

A front-mounted nissan patrol gu exterior sunvisor stops this heating process outside your vehicle skin. By blocking direct sunlight from touching the upper glass surface, your cabin temperature stays significantly cooler during long highway drives.

                      [ Solar Radiation Behavior Comparison ]
                                         │
        ┌────────────────────────────────┴────────────────────────────────┐
        ▼                                                                 ▼
[ Without Exterior Sunvisor ]                                    [ With Exterior Sunvisor ]
• Shortwave UV light strikes upper glass pane                   • Overhead sun rays hit exterior visor body
• Rays penetrate laminated windscreen glass                     • Solar heat reflects back into open air
• Dark vinyl dash absorbs light and generates heat              • Top 30% of glass stays in continuous shade
• Trapped thermal energy causes cabin heat spikes               • Dashboard surface temperatures drop by 15°C
• Air conditioner runs at high load continuously                • Reduced AC load preserves engine cooling capacity

Key Thermal Benefits of an Exterior Visor:

Lower Ambient Cabin Temps: Installing a nissan patrol gu exterior sunvisor reduces interior dash surface heat by up to 15°C on clear summer days.
Dashboard Material Protection: Keeping direct UV light off your dashboard prevents premature vinyl cracking, discoloration, and trim warping over time.
Better Driver Visibility: Blocking harsh overhead glare eliminates the need to constantly flip down interior sun visors, preserving an uninterrupted forward field of view.

Evaluating Visor Materials: Acrylic vs Fiberglass vs Metal

Choosing the right nissan patrol gu exterior sunvisor depends on how you plan to use your 4WD vehicle. Manufacturers build exterior visors using three main materials, each offering clear advantages for specific touring conditions.

                  [ Visor Material Selection Guide ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Dark Smoke Acrylic ]         [ Molded Fiberglass ]          [ Press-Formed Metal ]
• Semi-transparent sight line  • 100% opaque light block      • Maximum trail impact strength
• Pre-finished dark tint       • Easy to custom color match   • Heavy-duty fleet application
• Lightweight flex body        • Highly repairable on trail   • Requires multi-layer paint

1. Molded Dark Smoke Acrylic (Perspex)

A smoke acrylic nissan patrol gu exterior sunvisor is an exceptional option for daily drivers and general touring builds. The high-impact acrylic material arrives with a glossy dark tint finish that looks fantastic right out of the box.

Semi-Transparent Optical Line: Because acrylic allows some light transmission, you can see overhead obstacles like low tree branches or traffic signals without leaning forward over your steering wheel.
Flexible Structure: High-grade acrylic naturally absorbs small body twists and roof flex when your vehicle crosses severe axle-articulation obstacles on rough tracks.
No Extra Painting Required: The UV-stabilized dark smoke tint matches factory window tinting and door weather shields without requiring extra paint preparation.

2. Hand-Laid Fiberglass Reinforced Plastic (FRP)

A fiberglass nissan patrol gu exterior sunvisor offers maximum structural strength and complete opacity. Fiberglass visors ship with a smooth gelcoat exterior surface that is ready for primer and body paint.

100% Solar Blockade: Fiberglass blocks all direct light, providing a completely dark shade zone across your upper windscreen frame.
Custom Color Matching: You can paint a fiberglass nissan patrol gu exterior sunvisor to match your exact vehicle paint code, whether your Patrol is finished in Polar White, Platinum Silver, or Desert Gold.
Easy Field Repairs: If a low-hanging branch strikes your visor on a tight bush track, fiberglass material can be easily repaired using standard marine resin and filler kits.

3. Press-Formed Steel or Heavy Aluminum

Metal visors are built primarily for farm work, commercial fleets, and extreme mining applications. While a metal nissan patrol gu exterior sunvisor offers supreme stone impact resistance, its extra weight requires heavy-duty mounting brackets and thorough rust prevention coatings along folded sheet metal edges.

Technical Specifications and Material Comparison

Reviewing this detailed structural breakdown will help you pick the perfect nissan patrol gu exterior sunvisor configuration for your touring build:

Performance Metric	Molded Dark Smoke Acrylic	Hand-Laid Fiberglass (FRP)	Press-Formed Sheet Metal
Material Transparency	Semi-transparent smoke tint	100% Opaque (Solid shade)	100% Opaque (Solid shade)
Solar UV Blockade	Blocks 85%+ UV light	Blocks 100% direct light	Blocks 100% direct light
Paint Finish Need	Pre-finished glossy tint	Requires custom body paint	Requires powder-coat paint
Structural Flexibility	Moderate elastic flex	Rigid structural frame	Rigid structural frame
Trail Impact Resistance	Good for general touring	High (Easily repaired)	Maximum impact strength
Weight on Cab Roof	Very lightweight (~2.5 kg)	Medium weight (~3.8 kg)	Heavy weight (~5.5+ kg)
Vibration Damping	Absorbs high-speed flex	Needs rubber pad isolation	Needs heavy bracket mounts
Average Kit Price	$240 – $380 AUD	$350 – $580 AUD (+ paint)	$450 – $700 AUD

Aerodynamic Wind Noise and Drag Management

Because your vehicle has a broad, upright windscreen structure, adding a nissan patrol gu exterior sunvisor introduces an extra air-deflecting surface to your roofline. At highway speeds between 100 km/h and 110 km/h, unvented visors can trap incoming air beneath their lower lip, creating high-pressure air pockets that cause lift, vibration, and wind noise inside your cab.

                 [ Aerodynamic Pressure Flow Comparison ]
                                    │
  ┌─────────────────────────────────┴─────────────────────────────────┐
  ▼                                                                   ▼
[ Flat Unvented Visor Profile ]                   [ Sculpted Vented Visor Design ]
• Air traps beneath the visor brow                 • Incoming air flows into front relief slots
• Creates upward lift force on mounting feet       • High-velocity air exhausts across cab roof
• Causes vibration at high highway speeds          • Equalizes air pressure on bracket mounts
• Increases wind noise inside driver cab           • Eliminates wind noise and roof chatter

To prevent wind noise, quality nissan patrol gu exterior sunvisor designs feature built-in pressure relief slots or molded air channels. These relief vents allow trapped high-speed air to flow smoothly over your roofline. Pressure venting eliminates visor vibration, lowers stress on your A-pillar brackets, and keeps your vehicle quiet during long highway cruising.

Tools, Hardware, and Sealants Required

Having the correct tools and sealant chemicals ready before installing your nissan patrol gu exterior sunvisor ensures a clean, leak-free, and permanent installation:

Tool / Accessory	Specific Recommended Type	Purpose During Installation
Rivnut Tool	Twin-handle M5 or M6 thread setter tool	Setting threaded steel inserts into A-pillar sheet metal
Threaded Fasteners	316 Marine stainless steel button bolts	Fastening visor feet securely without risk of rust
Polyurethane Sealant	Sikaflex 221 or Sikaflex 291 marine sealant	Sealing drilled pillar holes to prevent water leaks
Anti-Rust Primer	Cold galvanizing spray or zinc primer	Coating raw steel hole edges against corrosion
Drill Bits & Stop	3mm pilot bit, 9mm step bit & depth stop	Drilling clean holes without hitting internal wiring
Isolation Gaskets	1.5mm high-density EPDM rubber sheet	Cushioning brackets to protect vehicle paintwork
Thread Locker	Medium-strength thread locker (Loctite 243)	Locking fasteners against corrugation vibration
Measuring Tape	Flexible tape measure & masking tape	Marking exact centerlines and mounting coordinates

Step-by-Step Nissan Patrol GU Exterior Sunvisor Installation

Follow this detailed 5-stage procedure to fit your nissan patrol gu exterior sunvisor securely to your vehicle cab:

                  [ 5-Stage Installation Sequence ]
                                 │
  ┌───────────────┬──────────────┼──────────────┬──────────────┐
  ▼               ▼              ▼              ▼              ▼
[ Stage 1 ]     [ Stage 2 ]    [ Stage 3 ]    [ Stage 4 ]    [ Stage 5 ]
Mark Centerline  Drill Holes    Seal & Insert  Fit Rubber     Torque Hardware
& Test Fit      with Stop      Rivnut Anchors Gasket Pads    & Test Seals

Step 1: Centerline Alignment and Mock-Up Test Fitting

Finding the exact geometric center of your windshield frame before drilling is vital to ensure your nissan patrol gu exterior sunvisor sits level across your cab line.

Clean the upper roof line, windshield rubber seals, and front pillars thoroughly using warm water and detergent, followed by isopropyl alcohol to remove wax and road grime.
Apply wide strips of painter’s masking tape down both front pillar faces and across the upper roof line to protect your vehicle paint during mock-up fitting.
Measure the overall width of the upper windshield frame between the outer drip gutters using a flexible measuring tape. Mark the exact center point onto your masking tape with a fine-tip pen.
Have an assistant help you lift the nissan patrol gu exterior sunvisor into position across the upper windscreen frame. Align the visor center mark directly with your pillar center mark.
Open both front doors fully to check clearance. Confirm that your outer bracket feet maintain at least 6mm of free space away from door frames and weather rubber seals.
Trace the outer footprints of each mounting bracket foot onto the masking tape using a fine scribe or marker.

Step 2: Precision Hole Drilling with Mechanical Depth Stops

Drilling into your vehicle A-pillar sheet metal requires care to prevent drill bits from plunging into internal wiring channels.

                 [ A-Pillar Drilling Cross-Section ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Outer Sheet Metal ]    [ Internal Air Gap ]           [ Inner Pillar / Loom ]
Drill outer skin only    Maintain 10mm drill clearance   Do NOT allow bit to contact
(approx 1.2mm steel).    using a mechanical stop collar. internal wiring bundles.

Use a sharp center punch to make a guide mark in the center of each hole coordinate. This prevents your drill bit from slipping across your painted surface.
Fit a mechanical drill depth stop collar onto a 3mm pilot drill bit, adjusting it so that no more than 10mm of the bit tip extends past the collar.
Drill pilot holes carefully at medium drill speed with steady inward pressure.
Enlarge the pilot holes using a step drill bit until the hole diameter matches your M5 or M6 rivnut sleeve (typically 7mm for M5 inserts or 9mm for M6 inserts).
Critical Swarf Cleanup: Run a small pickup magnet over each drilled hole to capture all loose steel metal filings. Leaving metal shavings on your vehicle paint will cause surface rust spots later.

1.Mark Mounting Coordinates:Exact measurement prevents crooked bracket alignment.

With the visor held securely in place, punch guide marks through your template onto your pillar masking tape. Check all side-to-side measurements again before drilling.

2.Drill Holes Using Depth Stop Collars:Prevents bit contact with internal electrical looms.

Attach a mechanical drill stop collar set to a 10mm depth limit. Drill pilot holes using a sharp 3mm bit, then enlarge holes using a step bit to match your rivnut sleeve size.

3.Apply Zinc Inhibitor and Polyurethane Sealant:Essential barrier against body sheet metal rust.

Clean away all metal filings using a magnet. Paint raw hole edges with two coats of cold galvanizing zinc primer. Inject a heavy bead of Sikaflex marine sealant into each hole opening.

4.Set Threaded Steel Rivnuts:Provides a permanent, heavy-duty threaded anchor.

Thread an M5 or M6 steel rivnut onto your insert tool mandrel. Push the rivnut into the wet sealant and squeeze the tool handles firmly to expand the anchor inside the pillar skin.

[INTERNAL LINK – COPY & PASTE BELOW]

Anchor Text: explore our complete range of Nissan Patrol GU exterior accessories and sunvisors

HTML Code to Paste:

<p>Ready to upgrade your Y61 touring rig for outback travel? <a href="[https://allmodel4x4spares.com/collections/sunvisors](https://allmodel4x4spares.com/collections/sunvisors)" rel="dofollow">explore our complete range of Nissan Patrol GU exterior accessories and sunvisors</a> engineered for maximum durability on rough tracks.</p>

Step 3: Anti-Corrosion Sealing and Rivnut Anchor Fitting

Unsealed drill holes in an off-road vehicle will rust quickly when exposed to rain, mud, and water crossings. Follow this multi-stage sealing process to ensure a leak-proof setup.

                 [ Multi-Barrier Sealing Assembly ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Zinc Anti-Rust Coating ]  [ Polyurethane Sealant ]     [ Compressed EPDM Rubber ]
Protects raw drilled steel  Injected into rivnut cavity  Fills micro gaps between
edges against moisture.     to block water ingress.      bracket foot and chassis paint.

Use a deburring tool to smooth away sharp metal burrs around the outer edges of each drilled hole.
Paint two coats of cold galvanizing zinc primer onto the raw metal hole edges using a small applicator swab, allowing the paint to dry completely.
Inject a generous bead of Sikaflex 221 or Sikaflex 291 marine polyurethane sealant directly into each hole cavity.
Thread a steel M5 or M6 rivnut insert onto your rivnut tool mandrel. Push the insert through the wet sealant until its outer lip sits flat against the pillar sheet metal.
Squeeze the rivnut tool handles firmly until the insert collapses and locks tightly against the back of the metal skin. Unthread the tool mandrel carefully.
Wipe away excess polyurethane sealant squeezed out around the rivnut flange using a clean cloth moistened with mineral spirits.

Step 4: Rubber Isolation Pads and Bracket Fastening

Bolting metal mounting brackets directly against vehicle paint creates hard contact points that wear through paint layers under road vibration, inviting hidden rust.

             [ Bracket Fastener Assembly Order ]
                            │
  ┌─────────────────────────┼─────────────────────────┐
  ▼                         ▼                         ▼
[ Stainless Button Bolt ] → [ Lock Washer ]        → [ Bracket Foot ]
                            │
                            ▼
[ EPDM Cushion Pad ]    → [ Polyurethane Bead ]    → [ Threaded Rivnut ]

Trace the physical outline of each nissan patrol gu exterior sunvisor bracket foot onto a 1.5mm sheet of high-density EPDM rubber material. Cut out your custom isolation pads using sharp scissors.
Punch matching bolt pass-through holes through the EPDM rubber pads.
Position the custom rubber pads directly over the installed rivnuts on your front pillars.
Lift your visor into position, setting its metal bracket feet flat on top of the EPDM rubber cushion pads.
Dip the threads of your 316 marine-grade stainless steel button bolts into medium-strength thread locker (Loctite 243).
Thread the stainless bolts through the bracket feet and rubber pads into your rivnut threads by hand to prevent cross-threading.

Step 5: Final Alignment Check, Torqueing, and Water Testing

With all hardware started loosely, perform final alignment checks before securing your nissan patrol gu exterior sunvisor permanently:

Step back 5 meters from your front bumper to confirm your nissan patrol gu exterior sunvisor sits completely level across the roofline and runs parallel to your top windshield rubber molding.
Using a hex wrench, tighten all mounting bolts in an alternating cross pattern to spread clamping pressure evenly across your bracket feet. Torque M5 bolts to 4.5 Nm or M6 bolts to 7.5 Nm. Do not over-tighten, as excessive torque can dent thin pillar sheet metal.
Open and close both front doors slowly to confirm that door frames clear the visor ends cleanly without rubbing against brackets or shade material.
Perform a water leak test: direct a steady stream of water from a garden hose around your pillar mounting brackets for 5 minutes while an assistant inspects interior roof linings for dampness.

External Australian Design Rules and Legal Standards

Before driving on public roads, verify that your installed nissan patrol gu exterior sunvisor meets national road transport safety standards. In Australia, vehicle accessory installations are governed by transport safety guidelines published on the Federal Register of Legislation under Australian Design Rule ADR 12/00 (Driver Field of View).

                 [ Road Safety & Legal Requirements ]
                                  │
  ┌───────────────────────────────┼───────────────────────────────┐
  ▼                               ▼                               ▼
[ Driver Field of View ]    [ Edge Radius Safety ]       [ Vehicle Dimensional Limits ]
Visor frame must not extend Visor & bracket edges must   Overall accessory width must
below primary wiper sweep   feature minimum 2.5mm - 5mm  stay within the outer body
zone on front glass.        rounded radius corners.      line of your Patrol cab.

Key Technical Criteria for Legal Compliance:

Wiper Swept Area Clearance: The bottom edge of your nissan patrol gu exterior sunvisor must sit above the primary forward view zone cleared by your front windshield wiper blades.
External Edge Radii: As outlined by Standards Australia, all forward-facing brackets and visor edges must feature smooth, rounded corners (minimum 2.5mm to 5.0mm radius) to minimize injury risks in pedestrian accidents.
Vehicle Width Restrictions: The total overall width of your fitted nissan patrol gu exterior sunvisor assembly must not extend past the outer body line of your vehicle cab.

Long-Term Maintenance for Outback Touring

Even a professionally fitted nissan patrol gu exterior sunvisor needs regular inspections to handle long miles over corrugated tracks and dusty outback highways.

                  [ Preventative Maintenance Schedule ]
                                    │
    ┌───────────────────────────────┼───────────────────────────────┐
    ▼                               ▼                               ▼
[ Initial 100 km Check ]       [ Bi-Annual Hardware Audit ]    [ Annual Sealant Inspection ]
Re-torque all stainless bolts  Inspect rivnuts for movement;   Examine polyurethane beads
after initial highway run to   re-apply thread locker if       around brackets; touch up
settle rubber gaskets.         fasteners show looseness.       weatherproofing as needed.

1. Post-Installation Fastener Torque Check

New EPDM rubber isolation pads compress slightly during your first highway drive. After completing 100 km of driving with your new nissan patrol gu exterior sunvisor, re-check all mounting bolts with a hex key and tighten them back to specification. This simple check prevents highway vibration from loosening hardware later.

2. Corrugation Vibration Checks

Corrugated dirt roads generate constant vibration throughout your vehicle frame. Make it a habit during long touring trips to check your visor brackets during morning pre-trip inspections. Make sure mounting bolts remain tight and check visor surfaces for hairline stress marks around bolt holes.

3. Cleaning and Surface Care

Acrylic Visors: Wash dark smoke acrylic perspex using warm water, mild car wash detergent, and a soft microfiber mitt. Never use ammonia-based glass cleaners or paper towels on acrylic surfaces, as harsh chemicals and coarse paper fibers will scratch dark tint finishes.
Fiberglass Visors: Maintain painted fiberglass visors using standard automotive paint care methods. Apply carnauba wax or synthetic paint sealer twice a year to protect color-matched paint coats from UV fading.

Key Takeaway Checklist for a Perfect Installation

To summarize your installation process, ensure you tick off each of these critical steps before heading out on your next outback trip:

Verify Materials: Pick dark smoke acrylic for pre-finished translucency or fiberglass for custom color-matched paintwork.
Use Mechanical Depth Stops: Always fit a drill stop collar set to 10mm when drilling pillar sheet metal to safeguard internal wiring looms.
Clean Metal Filings: Capture all drill filings with a magnet to stop rust spots from forming on your paint.
Apply Multi-Barrier Sealing: Treat raw hole edges with cold galvanizing zinc primer and inject Sikaflex polyurethane sealant into rivnut openings.
Fit EPDM Rubber Pads: Always place rubber isolation cushion gaskets beneath metal bracket feet to protect vehicle paintwork.
Verify Legal Clearance: Ensure the bottom edge of your nissan patrol gu exterior sunvisor stays above your windshield wiper sweep line.

Fitting a quality nissan patrol gu exterior sunvisor protects your cabin from thermal heat, eliminates blinding glare, and adds timeless touring style to your vehicle. By using marine-grade stainless hardware, steel rivnut anchors, zinc anti-rust primers, and marine polyurethane sealants, you ensure your setup remains rigid, silent, and waterproof for many years to come!
