Elite DIY Tray Kit & Trundle

Elite DIY Tray Kit & Trundle: The All-In-One Fabrication Solution

If you are looking to build a high-end, functional rear end for your 4×4, our DIY Tray Kit & Trundle is the ultimate starting point. We have engineered this package using high-precision laser-cut components with a 0.5mm tolerance, featuring a smart tab-and-slot design for straightforward assembly. By choosing the DIY Tray Kit & Trundle, you get a hybrid construction of steel and aluminium, providing the perfect balance between heavy-duty structural strength and a lightweight finish that preserves your GVM.

What’s Included in the DIY Tray Kit & Trundle

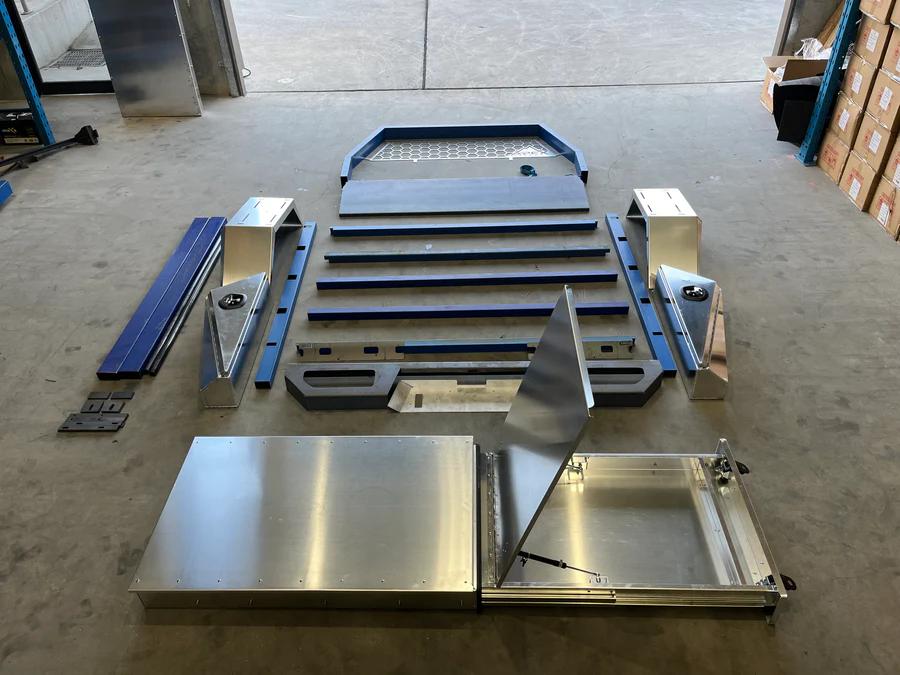

This comprehensive kit is designed to provide a professional-looking tray with integrated under-tray storage. The DIY Tray Kit & Trundle includes:

• Storage & Guards: Double tapered under-tray boxes (790L, 840L, or 890L options) and aluminium tapered guards to suit 33″ or 35″ tyres.

• Integrated Drawer: 1200L Trundle drawer with a sleek tapered panel for maximum utility.

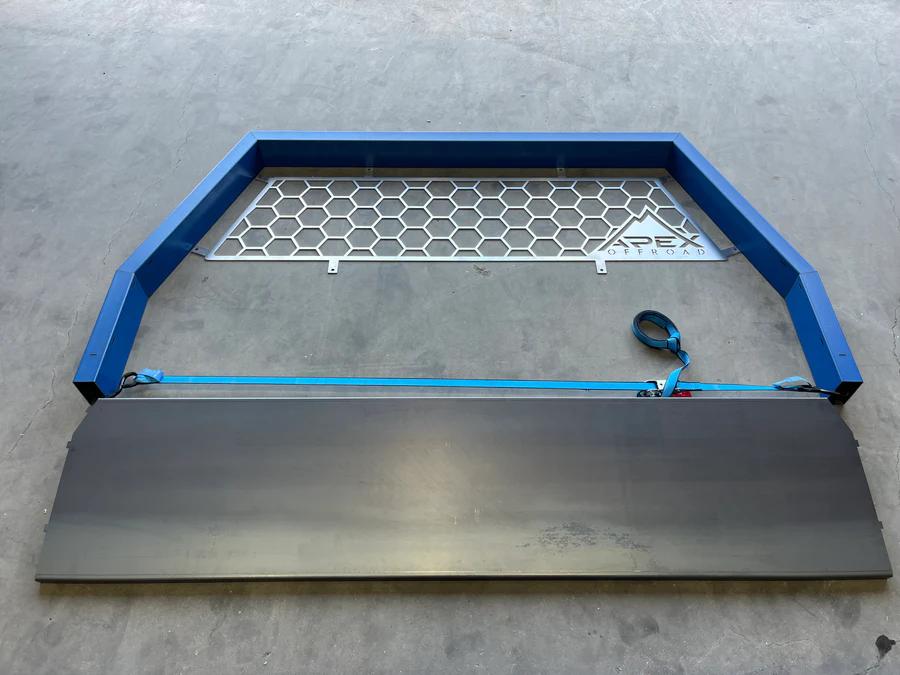

• Main Structure: 1-piece 100×50 laser-cut headboard (canopy-ready) and a folded tail light panel designed for Jimny-style lights.

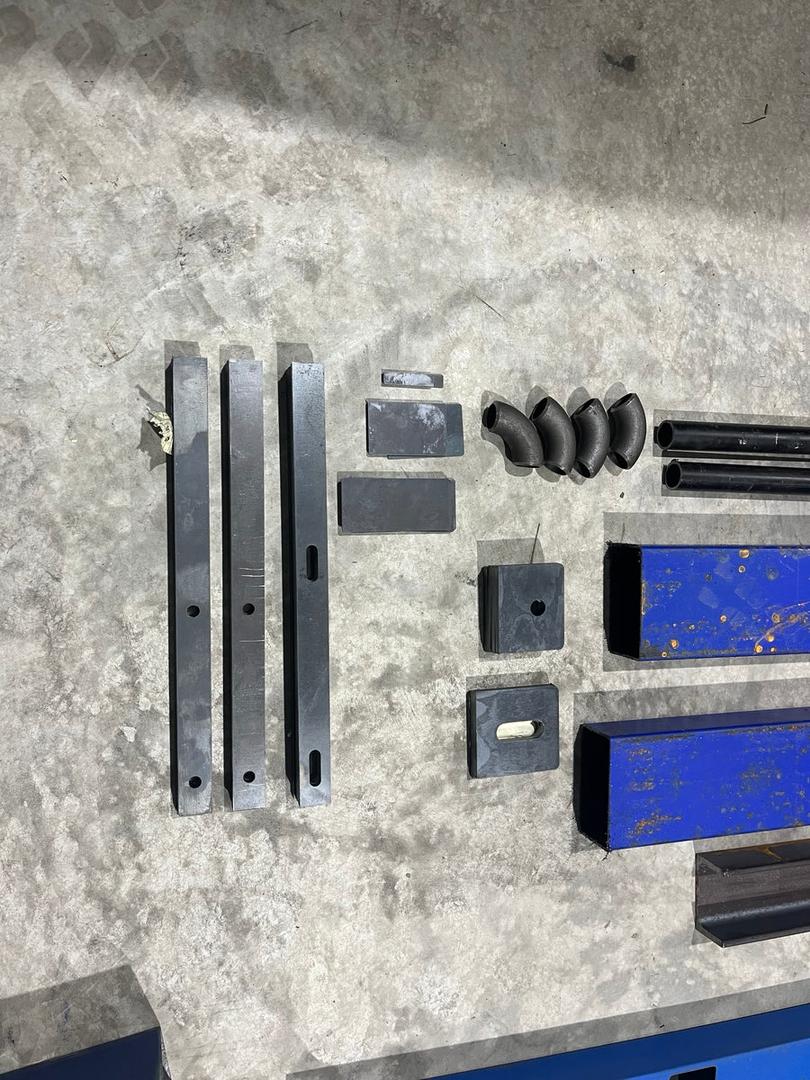

• Chassis & Mounting: 8mm plate tray mounts, a length of 70×40 channel for chassis mounts, and RHS end caps.

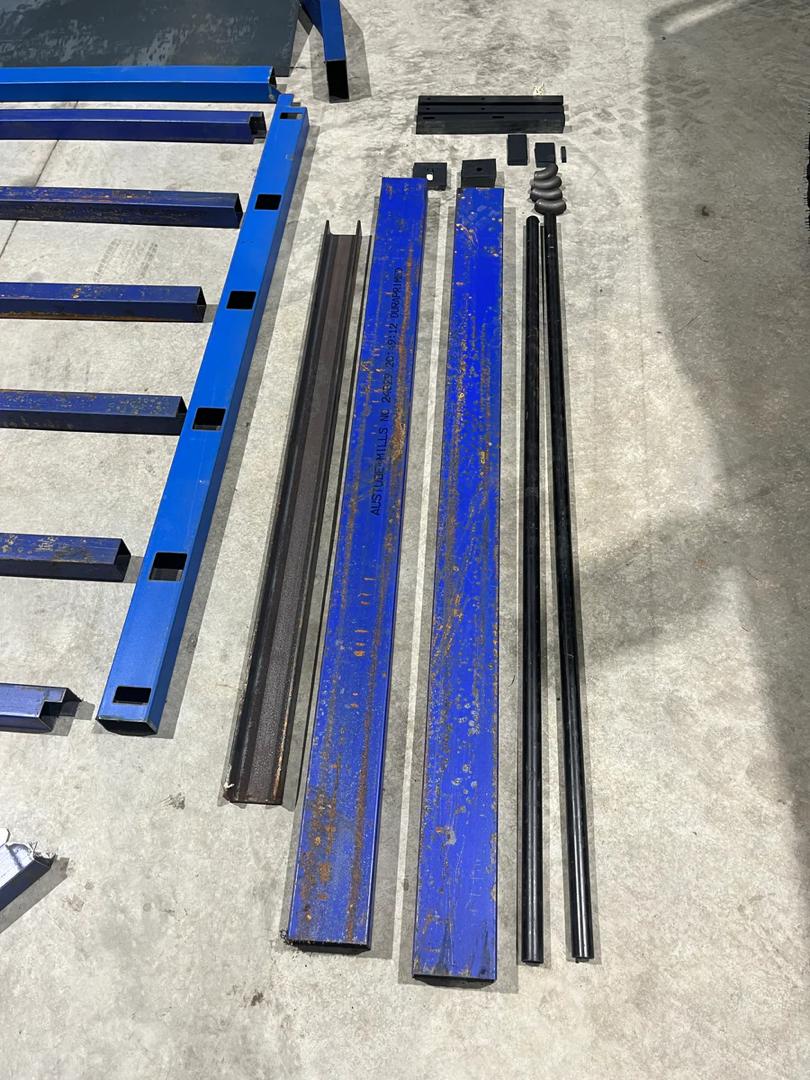

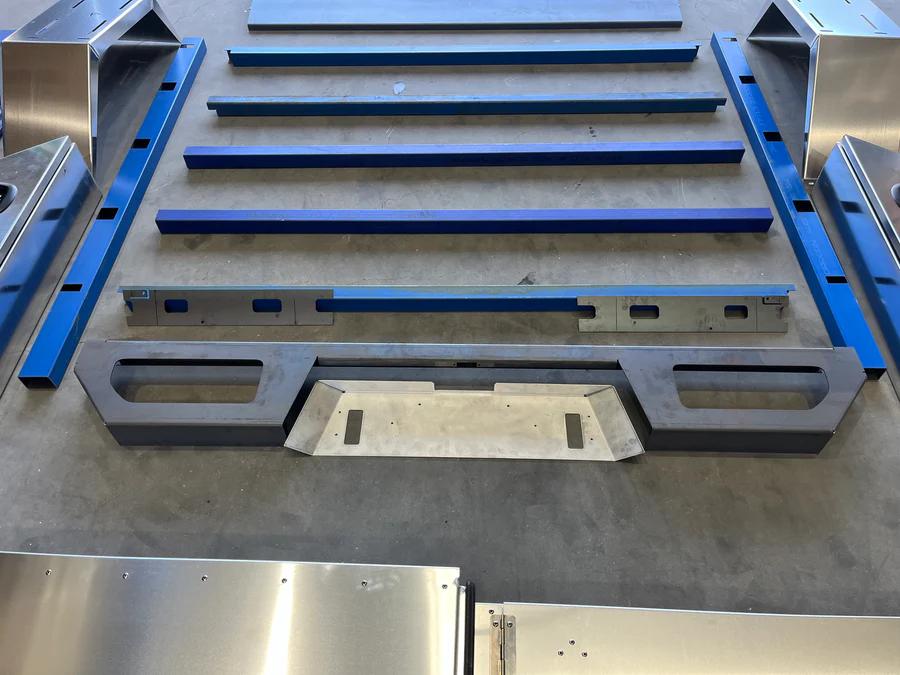

• Precision Rails: Laser-cut side rails and supports to ensure the width is set perfectly every time.

Customization and Finishing

Every DIY Tray Kit & Trundle is built to be versatile. While the core components are provided, the tray is designed to suit 3mm aluminium checker plate flooring, which must be purchased separately. You can also further enhance your DIY Tray Kit & Trundle with optional extras:

• Headboard infill mesh for added protection.

• Folded tray side lengths.

• 5mm plate canopy mounts and tie-down rail materials.

PLEASE CONTACT US FOR SHIPPING PRICES. This DIY Tray Kit & Trundle package is available for Depot Collection or Delivery to a Commercial Address.
