Equipping your 4×4 or commercial workhorse with premium sun visor protection touring 4wd accessories is one of the most effective upgrades you can make to eliminate blinding highway glare, lower cabin temperatures during scorching summer expeditions, and give your utility vehicle a rugged, expedition-ready stance. While modern utes like the Toyota LandCruiser, Ford Ranger, and Isuzu D-Max are engineered for extreme durability, factory windscreen configurations leave the upper glass edge exposed to intense low-angle solar radiation. Installing specialized sun visor protection touring 4wd equipment establishes an external physical canopy over the top glass edge, blocking direct sunlight before it enters the cabin and reducing interior greenhouse heating.
For commercial contractors, long-distance haulers, and touring enthusiasts alike, executing a proper sun visor protection touring 4wd installation requires precise attention to A-pillar structural alignment, aerodynamic drag dampening, and waterproof sealing. Because an exterior shield encounters powerful wind resistance at 110 km/h highway speeds, choosing high-impact optical acrylic or composite models supported by robust stainless steel hardware prevents panel flutter and protects factory paintwork. Whether you are outfitting a single cab utility or a fully accessorized dual-cab touring rig, mastering every phase of a sun visor protection touring 4wd build ensures your setup remains completely weather-sealed, vibration-free, and structurally secure over thousands of kilometers of rough terrain.
In this comprehensive technical guide, we break down the vital operational steps required for mounting sun visor protection touring 4wd hardware. From selecting UV-stabilized cast acrylic sheet materials and positioning stainless steel pillar brackets to applying neutral-cure polyurethane rust sealants, EPDM rubber isolation pads, and transport compliance checks, this guide provides the complete blueprint for your project.
Understanding the aerodynamic loads and roof pillar mechanical forces involved in a sun visor protection touring 4wd installation is essential to preventing panel fatigue or cabin water leaks.
[ Aerodynamic & Mechanical Architecture of Sunvisor Protection Touring 4WD ]
│
┌──────────────────────────────────────────┴──────────────────────────────────────────┐
▼ ▼
[ Optical-Grade Cast Acrylic Shield Assembly ] [ A-Pillar Structural Mounting Bracket Matrix ]
• 4.5mm UV-stabilized dark smoke PMMA material • Stainless steel or zinc-plated structural mounting brackets
• Tapered lead edge channels airflow upwards over cab roof • Stainless steel blind rivets or rubber expansion nuts
• Filters 90% of solar glare while maintaining optical clarity • Neutral-cure polyurethane sealant protects drill holes
• Dampened by continuous stainless or powder-coated frames • Heavy EPDM rubber isolation pads prevent paint chafing
When traveling at highway speeds, exterior cab visors encounter continuous air resistance that exerts uplifting and downward pressure on mounting brackets. A successful sun visor protection touring 4wd installation relies on stainless steel or heavy-gauge powder-coated steel side brackets fastened securely into A-pillar door jambs or outer cab roof channels. Distributing these clamping forces evenly across multiple fastener points during your sun visor protection touring 4wd project prevents localized sheet metal stretching or fatigue cracks around drill holes.
Furthermore, applying a neutral-cure marine polyurethane sealant (such as Sikaflex-221 or 291) inside every drilled pilot hole before driving fasteners home is a critical phase of any sun visor protection touring 4wd setup. Because vehicle pillars house internal structural box sections, preventing water ingress during heavy downpours or high-pressure car washes guarantees that your sun visor protection touring 4wd build will never cause internal roof pillar rust or headliner dampness.
Follow this structured practical sequence to complete your sun visor protection touring 4wd installation safely and efficiently.
1.Inspect Component Inventory and Prepare Cab Surfaces:Unpack kit, check acrylic panel for blemishes, and clean A-pillars.
Unpack your kit and check the acrylic panel for blemishes. Clean the vehicle roofline and A-pillar door jambs with alcohol wipes to prepare for your sun visor protection touring 4wd installation.
2.Align Visor Shield and Mark Pilot Hole Locations:Position acrylic panel, check side margins, and mark bracket hole points.
Dry-fit the visor assembly across the top windscreen edge, measure side clearances to ensure exact centering, and mark hole coordinates onto the pillar sheet for your sun visor protection touring 4wd.
3.Drill Pillar Holes and Apply Water Barrier Sealant:Drill pilot holes using depth stops and inject neutral-cure polyurethane.
Drill pilot holes into the marked A-pillar locations using a cobalt bit fitted with a depth stop. Fill each drill hole with marine polyurethane sealant to protect your sun visor protection touring 4wd against rust.

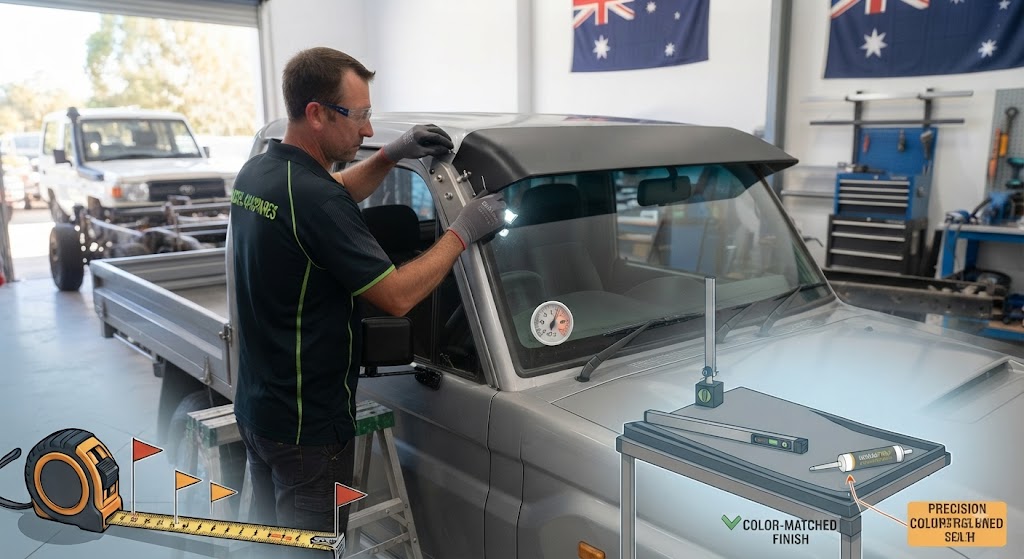

4.Mount Side Support Brackets and Center Windstay:Insert rubber pads, attach side brackets, and secure stainless blind rivets.
Place EPDM rubber pads beneath the side brackets and fasten them securely with stainless blind rivets or nutserts. Secure the central windstay to complete structural mounting for your sun visor protection touring 4wd.
5.Mount Acrylic Panel, Torque Fasteners, and Inspect:Position acrylic panel into brackets, tighten locknuts, and test security.
Insert the acrylic panel into its bracket slots, torque stainless button-head screws with nylon locknuts to specification, peel off protective film, and inspect your completed sun visor protection touring 4wd.
explore our complete range of 4x4 armor, side steps, and rock sliders
Evaluating physical properties helps builders select the correct shield style and bracket layout for their sun visor protection touring 4wd:
| Specification / Feature | Optical Cast Acrylic Visor | High-Impact Polycarbonate Visor | Molded Fibreglass Cab Visor | Stainless Steel Mesh Shade |
| Material Thickness | 4.0mm – 5.0mm Cast Acrylic | 3.5mm – 4.5mm Polycarbonate | 3.0mm Reinforced GRP | 1.5mm Woven Stainless Wire |
| UV Resistance Rating | Exceptional (Will Not Yellow) | Moderate (Requires UV Coating) | High (Painted Gelcoat Finish) | Impervious to UV Rays |
| Average Assembly Weight | 2.5 kg – 4.2 kg complete | 2.2 kg – 3.8 kg complete | 4.5 kg – 7.0 kg complete | 3.0 kg – 5.0 kg complete |
| Wind Drag Coefficient | Low (Tapered Airflow Curve) | Low (Tapered Airflow Curve) | Moderate (Solid Front Lip) | High (Mesh Surface Drag) |
| Glare Reduction Efficiency | 85% – 95% Light Filtered | 80% – 90% Light Filtered | 100% Solid Shade Block | 60% – 75% Light Filtered |
| Waterline Ingress Risk | Zero (When Correctly Sealed) | Zero (When Correctly Sealed) | Zero (When Correctly Sealed) | Zero (When Correctly Sealed) |
| Offroad Vibration Rating | High (With Center Stay) | High (With Center Stay) | Moderate (Heavy Rigid Body) | Moderate (Frame Flexing) |
Selecting high-quality material components determines how your sun visor protection touring 4wd build performs under extreme heat, freezing temperatures, and heavy wind buffeting.
[ Material Engineering for Sun Visor Protection Touring 4WD Builds ]
│
┌──────────────────────────────────┴──────────────────────────────────┐
▼ ▼
[ Optical-Grade Cast Acrylic Sheet (PMMA) ] [ Stainless Steel (304/316 Grade) Bracketry ]
• Superior optical clarity prevents driver visual distortion • Yield strength resists high-speed wind deflection forces
• Natural UV stability prevents yellowing and surface cracking • Powder-coated or polished finish resists coastal salt spray
• High scratch resistance compared to standard polycarbonate • Rigid mounting geometry keeps visor aligned across corrugated tracks
• Flexible memory retains shape across extreme thermal cycles • Fitted with EPDM rubber buffers to protect factory vehicle paint
Choosing 4.5mm optical-grade cast acrylic (Polymethyl Methacrylate) for a sun visor protection touring 4wd installation provides thermal stability and optical clarity. Unlike cheaper extruded plastics that warp or yellow after prolonged exposure to sunlight, cast acrylic retains its structural shape and deep smoke tint across severe desert heat cycles. An acrylic sun visor protection touring 4wd shield filters harmful ultraviolet radiation while allowing drivers to maintain full forward visibility.
Pairing your acrylic shield with 304 or 316-grade stainless steel mounting brackets is essential for a long-lasting sun visor protection touring 4wd setup. Stainless steel brackets resist rusting from trapped rain moisture and road salt. Furthermore, using stainless steel fasteners equipped with nylon-insert locknuts during your sun visor protection touring 4wd installation ensures hardware cannot back off due to engine harmonics or road corrugation vibrations.
Every completed sun visor protection touring 4wd installation must satisfy national transport regulations. In Australia, exterior vehicle body attachments are regulated by standards published by the Federal Register of Legislation under Australian Design Rules ADR 12/00 (Glare Reduction in Field of View) and ADR 42/00 (General Safety Requirements).
[ ADR Safety Compliance Criteria ]
│
┌────────────────────────────────┼────────────────────────────────┐
▼ ▼ ▼
[ Forward Field of View Standards ] [ Maximum Vehicle Projection ] [ Edge Radius & Safety Rules ]
• Must not obscure driver view • Must not extend beyond the • All exposed bracket edges
of traffic control signals outer width of door mirrors must have minimum 2.5mm radius
Maintaining your exterior visor after completing a sun visor protection touring 4wd installation preserves optical transparency and prevents surface scratches.
