The third-generation Mazda BT-50 (TF platform, 2020 to 2025) is an outstanding dual-cab utility on Australian roads. Sharing its rugged ladder chassis and bulletproof 3.0L turbo-diesel engine with the Isuzu D-Max, it delivers great towing power, off-road capability, and car-like highway comfort. But taking a modern BT-50 out into regional transport corridors or remote station country without heavy-duty frontal protection is a massive gamble. Striking a stray kangaroo or an outback wallaby at 100 km/h will punch straight through that painted plastic bumper apron, crushing your intercooler and radiator, and leaving you stranded with thousands of dollars in mechanical repair bills. That is why tracking down a quality used mazda bt50 bullbar is one of the smartest ways to armor your rig without paying brand-new retail prices.
However, picking up a secondhand steel frontal bar for a modern 2020–2025 ute requires far more care than grabbing an old-school bar for a classic truck. Third-generation BT-50s are packed with advanced electronic driver-assist safety tech, including grille-mounted millimeter-wave radar, stereo windscreen cameras, and front parking sensors. Buying the wrong pre-owned bumper or installing an inspected used mazda bt50 bullbar that has hidden accident twists, missing chassis crush cans, or blocked radar cutouts will trigger persistent dashboard safety faults and void your roadworthy compliance.
This plain English buyer’s guide breaks down everything you need to know about purchasing a used mazda bt50 bullbar—from structural inspection checklists and chassis bracket checks to radar integration, front coil spring upgrades, and Aussie road rules.
The Pre-Purchase Checklist: Inspecting a Secondhand Bar
Before handing over your cash for a used mazda bt50 bullbar, you need to inspect the steel shell and mounting hardware thoroughly:
[ Six Crucial Checks Before Buying a Used Bullbar ]
1. Check for Frame Twists and Asymmetry
└── Measure diagonally from outer wing tips to the chassis mounts on a flat floor.
2. Inspect the Chassis Subframe & Crumple Accordions
└── Look for stretched steel, micro-cracks around bolt slots, or deformed crush cans.
3. Verify Airbag and ADR Compliance Markings
└── Ensure the original manufacturer's compliance tag (e.g. TJM, ARB) is legible.
4. Check Parking Sensor Grommets & Wire Apertures
└── Make sure sensor housings are intact and not glued or drilled oversize.

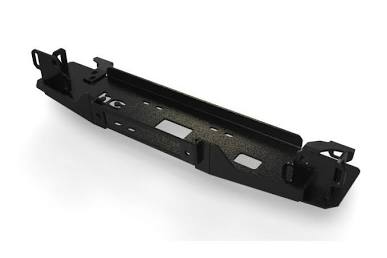

5. Inspect the Independent Winch Cradle
└── Ensure the internal 5mm steel winch bed is straight and free of recovery bends.
6. Confirm All High-Tensile Hardware Is Included
└── Check for vehicle-specific chassis nut plates, spacers, and Grade 8.8 bolts.
- Check for Hidden Twist: Never buy a used mazda bt50 bullbar while it is resting in tall grass or leaning on a shed wall. Lay the bar flat on a level concrete workshop floor. Measure diagonally from the bottom corner of each outer wing to the opposite chassis mounting slot. If the measurements differ by more than 5mm, the bar has taken a heavy off-center strike and will sit crooked on your ute.
- Examine the Crumple Zones: High-end frontal protection systems use chassis brackets with engineered crumple accordions. If someone is selling a used mazda bt50 bullbar taken off a crashed ute, those crumple accordions might already be stretched or bent. Deformed brackets cannot safely absorb another dynamic crash pulse.
- Verify the Hardware Pack: Sourcing replacement vehicle-specific chassis horn adaptors and nut plates can be expensive. Always ensure the seller includes the complete chassis bracket kit when buying a used mazda bt50 bullbar.
If you are looking for a fully inspected, workshop-verified pre-owned steel bar complete with its original chassis brackets, the 2020-2025 Mazda bt50 bullbar Solid comes checked for structural straightness and ready for outback touring.
To explore our full catalog of frontal protection across different 4WD platforms, browse our live Bull Bars category to find the ideal setup for your vehicle.
Safety Tech & Radar Integration: The TF Platform Challenge
The biggest trap when installing a used mazda bt50 bullbar on a 2020–2025 vehicle is navigating its factory driver-assist systems:
[ Modern Safety Radar Sightline Clearance ]
+-------------------------------------------------------------------------+
| [ Used Mazda BT50 Bullbar - Lowered Center Cross-Pipes ] |
| [===================================================================] |
| \ / |
| \--- Minimum 20° Clear Viewing Cone (Horizontal & Down) / |
| |
| [ Factory Grille Millimeter-Wave Radar ] |
| [ (Autonomous Emergency Braking & ACC) ] |
+-------------------------------------------------------------------------+
- Autonomous Emergency Braking (AEB) Radar: The 2020–2025 Mazda BT-50 houses its forward radar sensor directly behind the large front Mazda badge or lower grille aperture. An authentic, engineered used mazda bt50 bullbar features dropped central horizontal cross-tubes and open mesh windows that leave the radar’s active 20-degree viewing cone completely unobstructed. If an unverified bar blocks this window, your vehicle will trigger continuous emergency braking errors on the highway.
- Ultrasonic Front Parking Sensors: Factory front parking sensors must be transferred from your plastic bumper cover into the outer wings of your used mazda bt50 bullbar. Ensure the bar features dedicated sensor apertures and factory-style rubber isolation grommets. If sensors are mounted backwards or at an angle, they will detect the road surface and beep constantly.
- Relocating Winch Solenoid Control Boxes: Never bolt an electric winch control pack dead-center on the top crossbar of a used mazda bt50 bullbar! The box will sit directly in the radar beam path. Always mount the solenoid pack inside the engine bay or on an offset bracket behind the passenger-side wing.
If you are setting up other dual-cab utilities in your fleet, models like our 2005 to 2011 Navara bullbar d40 Spanish built Solid show how precision-engineered chassis brackets preserve vehicle geometry across different dual-cab platforms.
For flagship outback builds requiring extreme multi-post cattle protection, explore the Solid Stainless 5 Post Mesh Bullbar to see how heavy-duty livestock grids handle remote animal collisions.
Front Suspension Loading: Managing the Overhang Mass
The third-generation Mazda BT-50 utilizes an independent front suspension (IFS) with double wishbones and coil-over shock absorbers. Accounting for weight when bolting on a used mazda bt50 bullbar is vital for road handling:
Front Overhang Load (~95kg to 135kg)
[ Used Mazda BT50 Bullbar + Winch + Spotlights ]
\
v
[O===========O] ---------------------- [O===========O]
Front IFS Axle Rear Leaf Axle
(Factory GAWR: 1,450kg)
| Setup Configuration | Front Overhang Mass | Impact on Factory Springs | Recommended Suspension Fix |
| Bare Used Mazda BT50 Bullbar | 62kg to 78kg dry mass | 20mm to 30mm front-end sag | Heavy-duty coils (+50kg rating) |
| Bar + 9,500lb–12,000lb Winch | 95kg to 120kg total mass | 35mm to 45mm sag; hits bump stops | Constant-load coils (+100kg rating) |
| Bar + Winch + Steel Bash Plates | 115kg to 140kg total mass | Severe nose dive; tyre scrubbing | Matched heavy-duty struts / GVM upgrade |
[ Why Factory Springs Cannot Handle a Heavy Steel Bar ]
Standard Factory Suspension Setup:
Tuned for bare 12kg plastic bumper ===> Add 75kg Steel Bar & Winch ===> Front End Sags 35mm
(Reduced shock travel + violent bottoming-out + tyres chew out on inside shoulders)
Upgraded Constant-Load Coil Setup:
Heavy-duty coils rated for +100kg ===> Restores Factory Ride Height ===> Level Highway Stance
(Full upward shock travel + crisp steering response + even tyre wear across the tread)
Placing a 65kg to 80kg steel used mazda bt50 bullbar and an electric winch forward of the front axle creates a long lever arm. On soft factory coils, the front of your ute will sag by up to 40mm, causing your suspension to bottom out harshly against rubber bump stops over washboard corrugations. This suspension sag alters your steering geometry, forcing excessive negative camber and toe-out that will chew through the inside edges of your front all-terrain tyres in just a few thousand kilometres.
Always match your used mazda bt50 bullbar with a set of heavy-duty constant-load front coil springs rated for a permanent 50kg to 100kg load. On touring utes carrying a rear canopy, dual batteries, and camp drawers, combining your bar install with a certified Gross Vehicle Mass (GVM) upgrade keeps your ute completely road legal.
For deeper technical advice on how subframes handle dynamic recovery loads, read our guide on the best bull bars for winches to learn how chassis cradles protect your ladder frame.
To keep harsh outback sun off your dashboard and reduce cab temperatures on long highway runs, check out our Solid 4×4 Sun Visor or explore our full range of exterior 4WD sun visors.
Step-by-Step Shed Installation: Bumper Trimming & Fitting
Fitting a used mazda bt50 bullbar at home is a manageable weekend job with basic hand tools and a mate to help lift:
[Disconnect Battery & Unclip Factory Front Fog Light Harnesses]
│
â–¼
[Remove Factory Plastic Bumper Apron, Grille & Splash Guards]
│
â–¼
[Clean Chassis Horn Mounting Faces with Wax and Grease Remover]
│
â–¼
[Bolt 5mm Steel Winch Cradle Across the Front Chassis Rails]
│
â–¼
[Install Low-Mount Winch & Run Power Cables to Battery]
│
â–¼
[With a Mate, Lift the Used Mazda BT50 Bullbar Outer Shell]
│
â–¼
[Center the Bar Symmetrically & Set an 18mm-20mm Body Gap]
│
â–¼
[Torque All Grade 8.8 High-Tensile Bolts to Manufacturer Specs]
│
â–¼
[Drill & Pin Brackets with Hardened Steel Shear Pins]
1. Removing and Trimming the Plastic Bumper
Modern BT-50s require bumper trimming. Unclip the front grille and disconnect your fog light wiring harnesses. Using high-tack masking tape, mark your cut line along the lower bumper template line. Cut the plastic cleanly using an oscillating multi-tool or pneumatic air saw, and finish the raw plastic edge with black rubber pinch-weld trim for a tidy, professional look before mounting your used mazda bt50 bullbar.
2. Mounting the Winch Subframe
Thoroughly clean all road grime from the chassis mounting faces. Slide the 5mm steel winch cradle over the chassis horns, aligning the holes with the factory chassis threads. Run the supplied high-tensile Grade 8.8 bolts in loosely so you can adjust the subframe before tightening.
3. Setting the Body Flex Clearance Gap
Vehicle bodies float on flexible rubber body mounts, while your used mazda bt50 bullbar bolts directly to the rigid steel ladder chassis. Always leave an even clearance gap of 18mm to 20mm between the top wings of the bull bar and the bottom edge of your front headlights and mudguards. If you mount the bar tight against the body, normal off-road chassis flex will force the steel bar into your panels, causing expensive guard dents.
4. Pinning the Mounting Brackets
Once your used mazda bt50 bullbar is centered and aligned, drill pilot holes through the overlapping bracket plates and hammer in hardened steel roll pins or shear bolts. This stops the bar from pivoting backward into your radiator support panel if you hit a kangaroo at highway speeds.
For ute owners building custom rear flatbeds to match their front bar, check out our DIY Tray Kits category and DIY Ute Tray Kit Dual Cab for complete flat-pack fabrication options.
Australian Road Regulations & ADR Compliance Standards
Any frontal protection accessory bolted to an Australian road-registered vehicle must adhere strictly to national standards and state transport modification codes:
- ADR 69/00 & ADR 73/00 (Occupant Crash Protection): A road-legal used mazda bt50 bullbar features vehicle-specific subframe brackets incorporating calculated crumple accordions. In a high-speed collision, these brackets absorb dynamic collision energy and transmit crash deceleration pulses to chassis sensors at the exact factory rate, ensuring SRS airbags deploy without delay.
- Australian Standard AS 4876.1-2002: The bar profile must conform closely to the shape of the vehicle’s front end. Leading builders ensure all forward-facing surfaces, vertical posts, and brackets on a used mazda bt50 bullbar feature rolled, deburred edges with a minimum 5mm radius to minimise injury risks to vulnerable road users.
- The 11-Metre Forward Road Visibility Rule: As enforced by state transport authorities—including Transport Victoria VSI 1 Bull Bar Standards and Transport for NSW Frontal Protection Guidelines—a front bar cannot project upward into the driver’s 11-metre forward road viewing plane or obscure front indicators, headlights, or licence plates. Furthermore, the overall installation must satisfy national modification frameworks under the Department of Infrastructure ADR Vehicle Standards to maintain ongoing roadworthiness.
Buying an uncertified, non-compliant bar risks major roadside defect notices, expensive engineering inspections, and denied insurance claims in the event of an accident.
For drivers building heavy touring rigs across other platforms, compare our Toyota LandCruiser 79 Series BULLBAR Solid or check out cab accessories like the Solid 79 Series Sun Visor to keep your setup protected.
Frequently Asked Questions
Can I fit a 2011–2020 Mazda BT-50 bullbar to a 2020–2025 model?
No. The previous-generation BT-50 (UP/UR models, 2011–2020) was built on the Ford Ranger platform. The third-generation BT-50 (TF model, 2020 to 2025) is built on the Isuzu D-Max platform, meaning the chassis horns, bolt spacing, and body lines are completely different. A used mazda bt50 bullbar must be specifically built for the 2020–2025 TF platform.
Will an Isuzu D-Max bullbar fit a 2020–2025 Mazda BT-50?
The internal chassis mounting brackets and winch cradle are identical because both utes share the same ladder chassis. However, the outer wings and top grille brow differ slightly because Mazda and Isuzu use distinct front headlight shapes and grille contours. An authentic used mazda bt50 bullbar provides the correct body cut lines to clear Mazda’s front panels.
How do I know if a used mazda bt50 bullbar has been in a crash?
Lay the bar flat on a level workshop floor and take diagonal cross-measurements from the wing tips to the chassis mounts. Inspect the mounting bracket accordions for stretched metal, flaking paint, or hairline cracks. If a used mazda bt50 bullbar shows twisted brackets or asymmetric wing gaps, it has taken an impact and should not be used.
Does fitting a used mazda bt50 bullbar affect factory radar?
Not if you select a bar engineered for the TF platform. A certified used mazda bt50 bullbar positions its center cross-pipes and mesh screen clear of the grille-mounted millimeter-wave radar sensor’s active 20-degree viewing envelope, ensuring autonomous emergency braking and adaptive cruise control continue to function normally.
Do I need to upgrade my front springs when fitting a used mazda bt50 bullbar?
Yes. A steel used mazda bt50 bullbar weighs roughly 65kg to 80kg dry. When you add a low-mount electric winch, driving lights, and underbody bash plates, total front overhang mass can exceed 115kg. Fitting heavy-duty constant-load front coils rated for +50kg to +100kg prevents suspension sag, avoids harsh bottoming out, and protects your front tyres from rapid wear.
Summary: Scoring Quality Frontal Protection on a Budget
Picking up an inspected, pre-owned steel front bar is one of the best ways to get commercial-grade outback protection onto your third-generation Mazda BT-50 without paying brand-new retail prices. By checking diagonal measurements to rule out crash damage, verifying that all chassis brackets and crumple accordions are intact, preserving factory millimeter-wave radar sightlines, and upgrading to heavy-duty constant-load front coils, your used mazda bt50 bullbar will protect your cooling pack across thousands of kilometres of rugged outback tracks.
