Executing a successful tub to ute tray conversion is one of the most transformative upgrades you can perform on a four-wheel drive utility vehicle. While factory sheet metal tubs offer sleek styling out of the showroom, they frequently restrict practical cargo capacity, lack durable tie-down points, and suffer expensive panel denting when navigating tight offroad tracks. Transitioning your vehicle through a tub to ute tray conversion replaces cramped curved bed walls with a spacious, heavy-duty flatbed deck designed to maximize usable cargo volume, facilitate canopy installation, and streamline equipment access for trade and touring builds.
For 4WD enthusiasts and commercial operators, undertaking a tub to ute tray conversion provides total control over rear payload layout. Converting a tub body into a flat platform allows you to integrate sliding under-tray drawers, side toolboxes, water tanks, and custom spare wheel mounts directly over the chassis rails. Whether you are outfitting a Toyota HiLux, Ford Ranger, Isuzu D-Max, or Mitsubishi Triton, mastering the step-by-step process of a tub to ute tray conversion ensures your vehicle achieves optimal axle weight distribution, rugged trail durability, and long-term utility performance.
In this ultimate technical guide, we break down every stage of a tub to ute tray conversion. From unbolting factory tubs and unhooking OEM wiring looms to aligning structural main runners, setting cab flex gaps, wiring LED lamps, and fulfilling transport compliance rules, this article provides the complete technical blueprint for your tub to ute tray conversion.
Understanding the mechanical transition during a tub to ute tray-conversion is essential for maintaining vehicle chassis balance and structural integrity.
[ Mechanical Architecture of a Tub to Ute Tray Conversion ]
│
┌────────────────────────────────────────────┴────────────────────────────────────────────┐
▼ ▼
[ Factory Tub Uninstallation Stage ] [ Heavy-Duty Flatbed Installation Stage ]
• Disconnect OEM tail lamp loom & blind spot sensor wiring • Position heavy-duty longitudinal main runners on rails
• Unbolt factory bed bolts from chassis mounting brackets • Fit EPDM rubber chassis pads to absorb road vibration
• Relocate fuel filler neck & breather tubes to flatbed height • Secure model-specific laser-cut chassis brackets
• Lift off sheet metal tub using engine crane or multi-person lift • Mount high-strength flat deck floor & headboard assembly

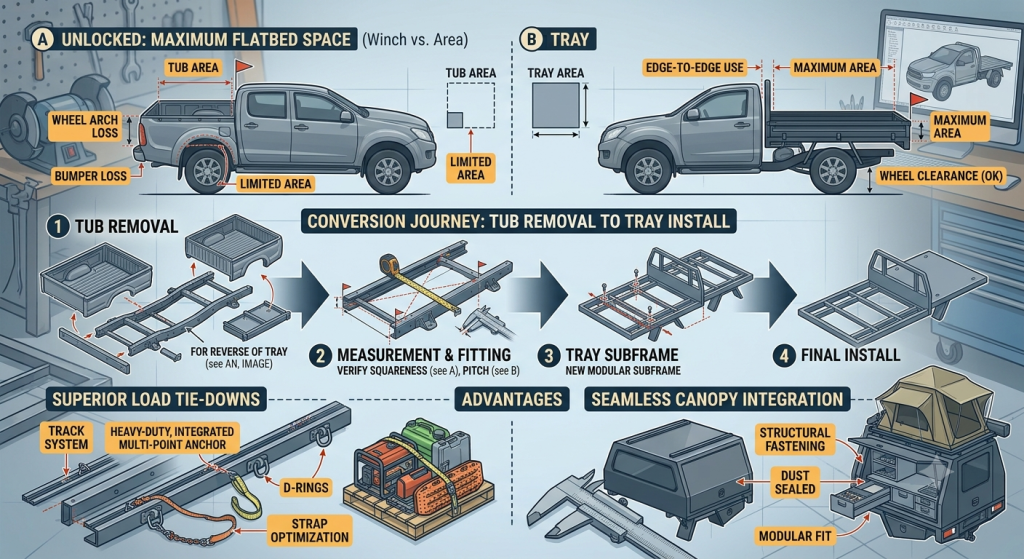

A factory sheet metal tub is secured to the frame via dedicated chassis mounting tabs. During a tub to ute tray conversion, removing the tub reveals these factory chassis mounting points along with fuel filler hoses and electrical harnesses. The foundation of a tub to ute tray-conversion relies on fitting structural longitudinal main runners parallel to the frame, connected by transverse crossmembers that distribute heavy payload forces evenly.
Additionally, installing heavy-duty EPDM rubber isolation pads between the chassis brackets and tray runners is a crucial phase of any tub to ute tray conversion. These isolation pads dampen road harmonic vibrations and allow necessary chassis articulation when driving across extreme cross-axle terrain, preventing stress cracks from forming along the new flatbed floor deck.
Converting your vehicle requires methodical disassembly and assembly steps. Here are seven fundamental procedures to follow during a tub to ute tray conversion:
Before unbolting the tub during a tub to ute tray conversion, disconnect the tail lamp wiring, reverse camera loom, license plate lights, and blind-spot radar sensors from the main chassis harness plugs.
Unbolt the fuel filler neck bracket from the inner tub liner. Managing fuel hose angles correctly is vital during a tub to ute tray conversion to prevent fuel spillage or slow refueling.
Unbolt the factory bed mounting bolts securing the tub to the chassis rails. Applying penetrating oil to rusted chassis bolts streamlines this phase of your tub to ute tray conversion.
Once the tub is lifted clear during your tub to ute tray conversion, clean all dirt and surface scale from the chassis frame, then lay down heavy-duty EPDM rubber chassis isolation pads.

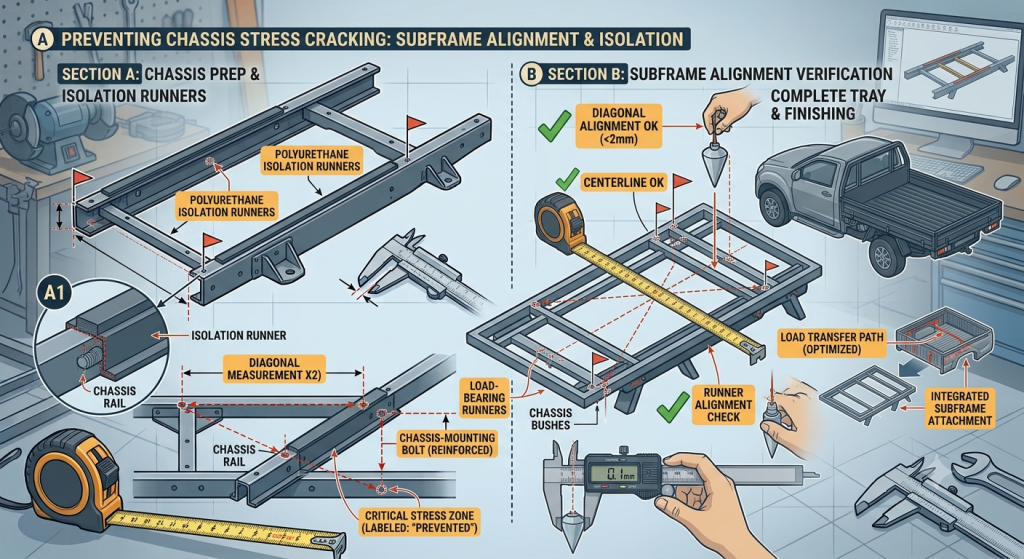

Position the longitudinal runners of your new tray onto the chassis mounts. Diagonally measuring corner-to-corner ensures your tub to ute tray conversion results in a perfectly square subframe.
Maintain a minimum clearance gap of 30mm to 50mm between the back of the cabin wall and the tray headboard. Proper spacing in a tub to ute tray conversion prevents cabin panel contact during chassis twist.
Complete your tub to ute tray conversion by wiring rear LED tail lights into the factory harness with sealed plugs and fitting wide wheel arch mudguards.
Evaluating structural metrics demonstrates why performing a tub to ute tray conversion enhances total vehicle capability:
| Specification / Feature | Factory Sheet Metal Tub | Heavy Steel Tray Conversion | Modular Alloy Tray Conversion | Hybrid Steel/Alloy Tray Conversion |
| Usable Deck Space | Restricted by Wheel Arches | Full 100% Flat Deck Floor | Full 100% Flat Deck Floor | Full 100% Flat Deck Floor |
| Average Component Weight | 110 kg – 140 kg | 160 kg – 220 kg | 85 kg – 130 kg | 120 kg – 160 kg |
| Tie-Down Anchor Points | Limited Internal Cleats | Heavy Perimeter Rope Rails | Integrated Internal Tracks | Perimeter Rails & Floor Tracks |
| Under-Tray Drawer Support | Extremely Restricted | Fully Integrated Frame | Fully Integrated Frame | Fully Integrated Frame |
| Impact & Dent Resilience | High Vulnerability | Maximum Heavy Duty Shield | Moderate Impact Resistance | High Structural Protection |
| Canopy Mounting Utility | Complex Tub Mounting | Direct Bolt-On Subframe | Direct Bolt-On Subframe | Direct Bolt-On Subframe |
| Offroad Body Clearance | Low Departure Angle | Improved Departure Angle | Improved Departure Angle | Improved Departure Angle |
Selecting the right flatbed material is a crucial planning stage when preparing for a tub to ute tray conversion.
[ Material Selection for a Tub to Ute Tray Conversion ]
│
┌───────────────────────────────────────┴───────────────────────────────────────┐
▼ ▼
[ High-Tensile Structural Carbon Steel ] [ Extruded Marine-Grade Aluminum Alloy ]
• Maximum point-load strength for heavy commercial tools • Saves 50 kg to 90 kg of mass during conversion
• Superior resistance to severe impact gouging and dents • Excellent natural barrier against coastal salt corrosion
• Easily repaired using standard MIG or stick welding • Keeps vehicle total mass well within legal GVM limits
• Requires multi-stage primer and powder coat protection • Requires isolation washers against galvanic corrosion
Choosing structural steel for a tub to ute tray conversion provides unmatched rigidity and impact resistance. Steel runners handle heavy point-loading without fracturing, making steel an ideal choice for tradespeople carrying tools, dense equipment, or heavy machinery. While a steel flatbed adds slightly more unladen mass than aluminum during a tub to ute tray conversion, its structural resilience on corrugated offroad tracks is exceptional.
For owners seeking to optimize payload capacity, choosing marine-grade aluminum for a tub to ute tray conversion offers substantial weight savings. High-strength 6061-T6 extruded aluminum floor planking reduces total tray weight by up to 45% compared to steel. An aluminum tub to ute tray conversion is naturally resistant to rust, making it ideal for beach driving and long-range outback touring setups carrying heavy slide-on canopies.
Follow this detailed operational sequence to execute your tub to ute tray conversion safely and efficiently.
1.Prepare Vehicle and Disconnect Harnesses:Disconnect battery, unhook wiring looms, and unbolt fuel filler neck.
Park the vehicle on a level floor, disconnect the battery, and unhook all rear wiring harnesses. Unbolt the fuel filler neck bracket from inside the tub to begin your tub to ute tray conversion.
2.Unbolt and Remove Factory Sheet Metal Tub:Remove chassis tub bolts and carefully hoist tub off the frame.
Remove all factory bed mounting bolts. Using an engine crane or multi-person lift, carefully lift the tub clear of the chassis to complete the removal phase of your tub to ute tray conversion.
3.Clean Frame and Lay Rubber Isolation Pads:Clean chassis rails, paint bare metal, and position isolation pads.
Scrape away dirt and road scale from the chassis frame rails. Lay heavy-duty EPDM rubber isolation pads along the chassis mounts as a foundational step of your tub to ute tray conversion.
4.Mount Subframe and Verify Diagonal Squareness:Position main runners, align mounting brackets, and check diagonals.
Position the main longitudinal runners onto the chassis mounts. Measure diagonally corner-to-corner to confirm the subframe is perfectly square during your tub to ute tray conversion.
5.Assemble Deck, Wire Lighting, and Perform Final Checks:Install floor deck, attach headboard, wire LED lights, and fit mudguards.
Secure the floor deck panels, attach the front headboard, plug in the LED rear light harness using weatherproof connectors, and mount mudguards to finish your tub to ute tray conversion.
